R911374794

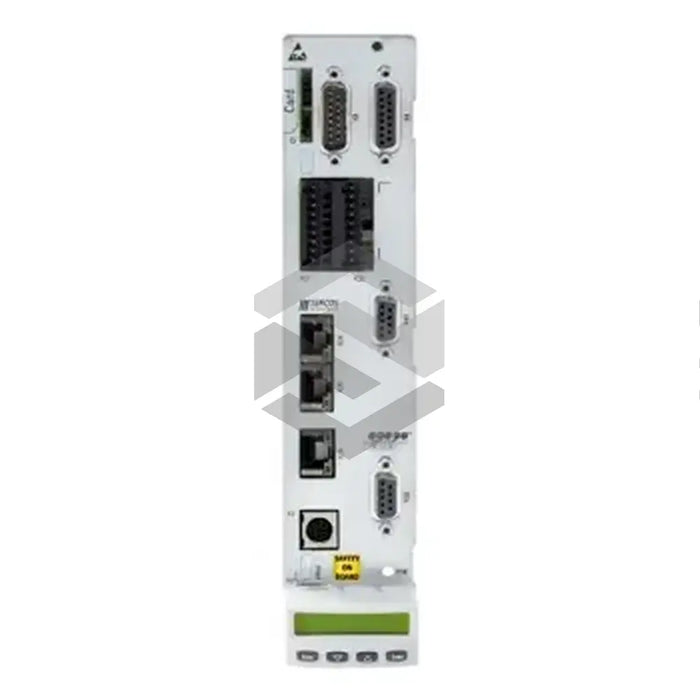

The advanced control section R911374794 (CSH02.1B-ET-EC-NN-S4-NN-NN-FW) is produced by renowned manufacturer Bosch Rexroth Indramat. Notable for its wiring compatibility with both ferruled and non-ferruled wire ends in its spring terminals, this section requires 10mm stripped wire lengths. The section is known for its inclusive shielding for analog outputs and inputs, and an impressive inrush current rating of less than 5A. It also comes with an associate Type 2 relay with a maximum load capacity of 30V and its power consumption is determined by the individual power consumption of its optional modules.
For analog voltage input connections with a length exceeding 30m, shielded cables are a prerequisite. Each digital output of the safety technology module can support up to 350mA of output current. The device, designed to provide active current supply, should not be operational under excessively high temperatures. Its digital outputs showcase energy absorption capabilities, minimizing voltage peaks from inductive load cutoffs. The device uses bounce-free, electronic switches and can function like a programming module using its control panel. The panel also displays command and error diagnoses. Note that the optional modules must remain connected when power supply is activated. The multipurpose inputs can function either as voltage or current inputs. Shipping of this control section is available globally.
