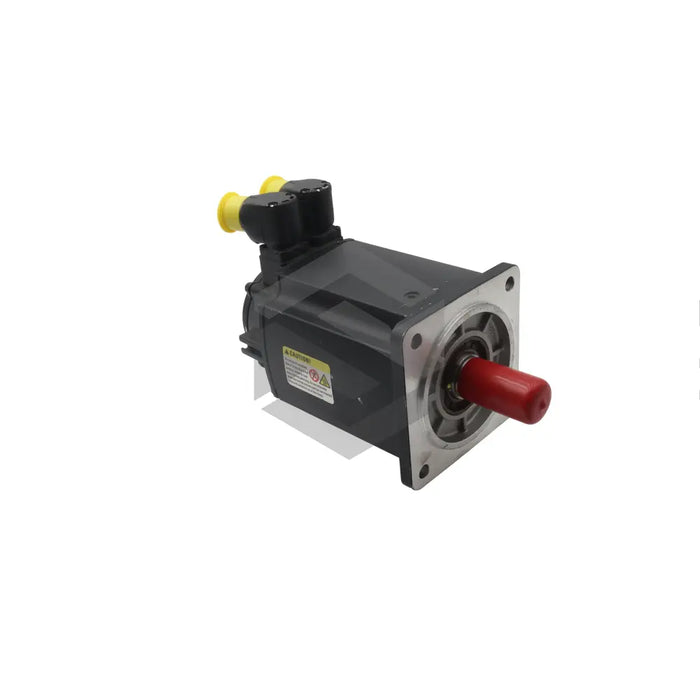

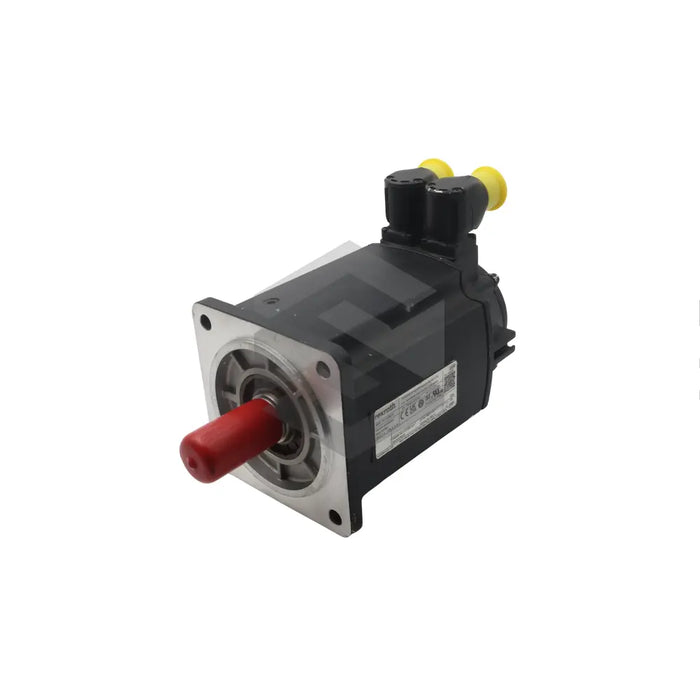

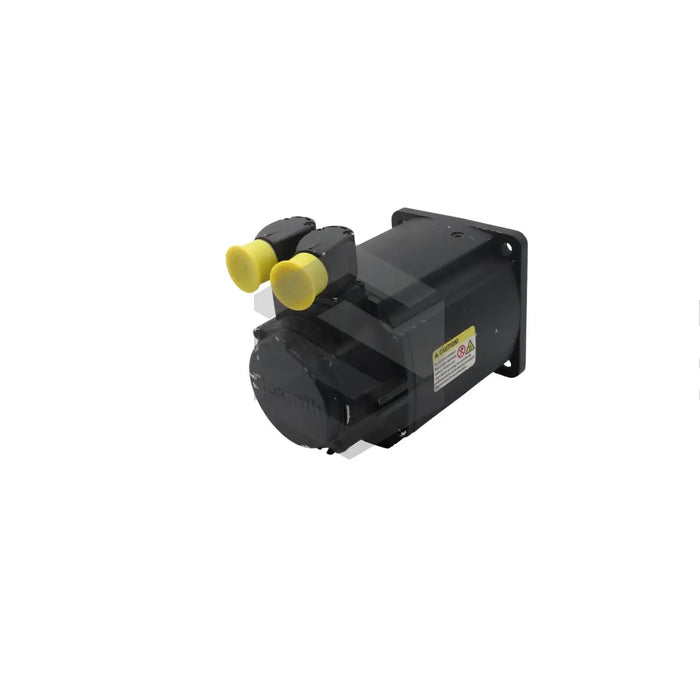

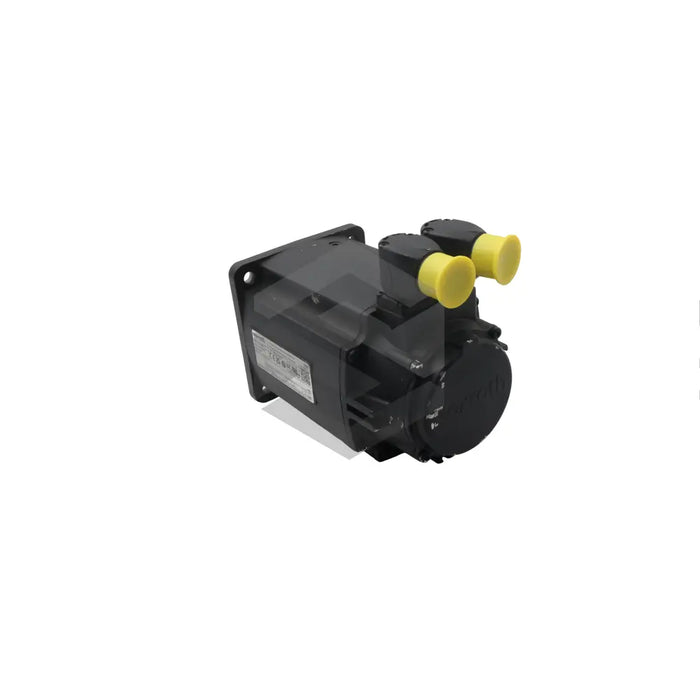

R911375196
Produced by global leader Bosch Rexroth Indramat, the model R911375196 (MSK060B-0300-NN-S3-UP0-NNNN) represents the forefront of automated technology. Known for its durable and cost-effective synchronous motors, drive converters, and industrial PCs, Bosch's R911375196 (MSK060B-0300-NN-S3-UP0-NNNN) is a powerful synchronous motor designed to operate various systems including robotics, handling systems, and printing equipment.
Featuring a standard design and optical encoder for enhanced precision, the MSK060 synchronous motor offers a consistent torque of 1.86 Nm/A, with a voltage constant of 113.5 V/1000 rpm. It employs a shaft balanced with a keyway to provide torque transmission without positive backlash. Its economical operation is ensured by an explicit temperature control sensor and an IP65 protection category, offering operation under adverse conditions. Despite consuming a continuous current of 3/3.3 A, it generates a continuous torque of 5/5.5 Nm at a speed of 4800 rpm. It can reach peak torque of 15 Nm with a maximum consumed current of 12 A. Model R911375196 (MSK060B-0300-NN-S3-UP0-NNNN) doesn't contain a clamping brake and is thermally efficient with a time constant of 16 minutes. It is UL-certified and operates optimally at temperatures up to +40 degrees Celsius, with natural convection maintaining ambient temperature effectively.
30 Day Warranty
Technical Specifications
