R911375466

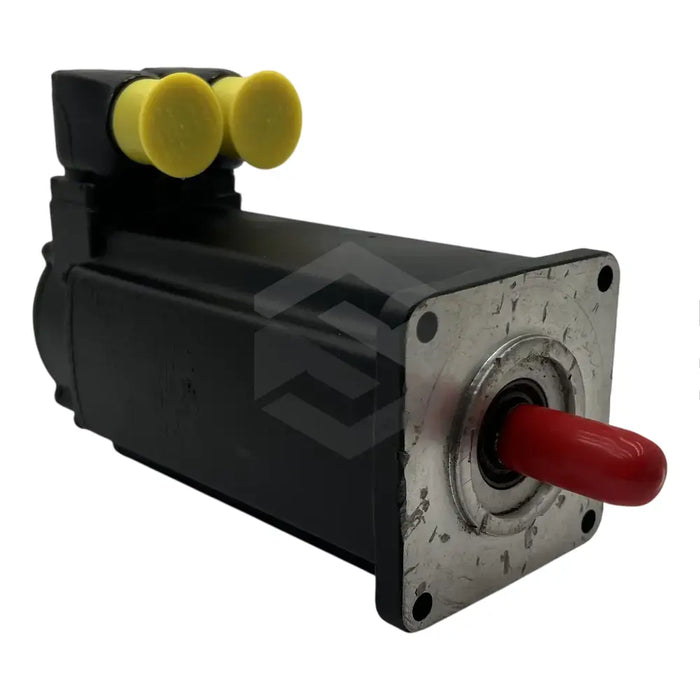

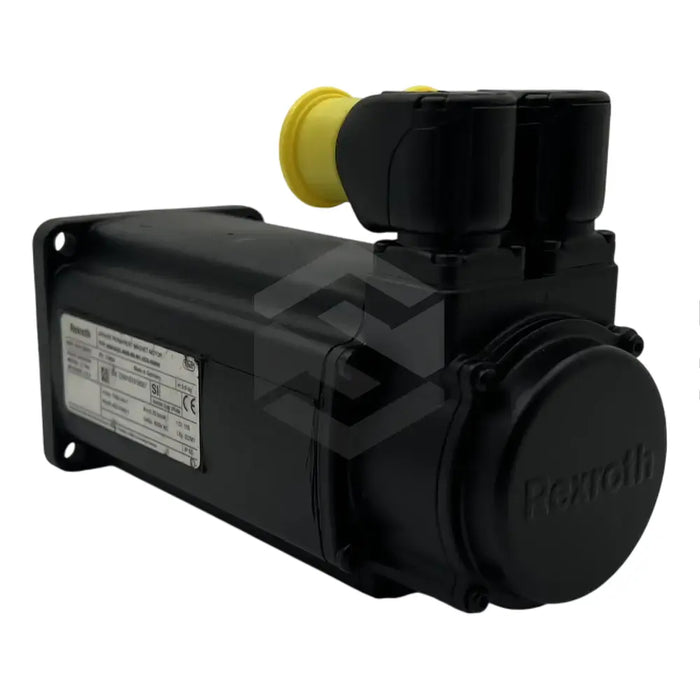

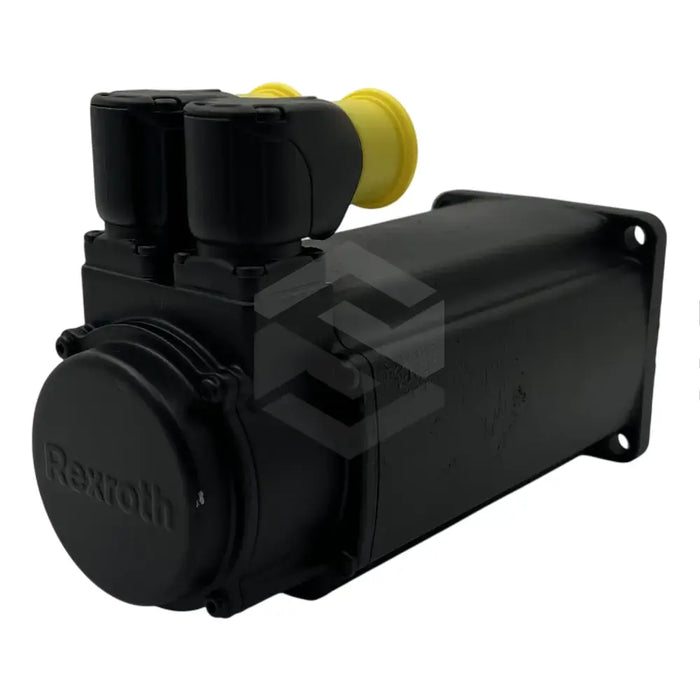

The R911375466 (MSK043C-0600-NN-M3-UG1-NNNN), a high-quality synchronous servo motor, is a product of the reputable Bosch Rexroth Indramat. The motor's specifications depict two captured temperature models: a 60K increase on the housing and a 100K ascent on the winding. The data presented for the 60K model adheres to a 40 degrees Celsius environment, insulated construction, and a maximum 60K housing temperature elevation—it shows a steady 2.7 continuous torque and 3.6 Amps standing current. The data for the 100K model, suitable for an ambient temperature of 40 degrees Celsius, non-insulated construction, and a peak 100K temperature increase on winding, highlights a 3.1 continuous torque and 4.3 Amps at standstill. The servo motor also hosts a capacitive absolute multi-turn encoder with 16 signal periods.
This motor is equipped with a rotatable, 240-degree power connector and a plain shaft with a default sealing ring. With an electrically released integrated holding brake that provides 4 Nm torque, the motor is designed for convection cooling, maintaining an operational temperature between 0-40 degrees Celsius. This servo motor can reach a maximum speed of 7500 RPM with the encoder drawing a maximum of 50 milliamps at a top speed of 12000 RPM. It is enclosed within an IP65-rated housing and weighs approximately 3.6 kilograms. Proper installation and commissioning should be conducted by experts to ensure safety and compliance with instructions provided in the documentation.
