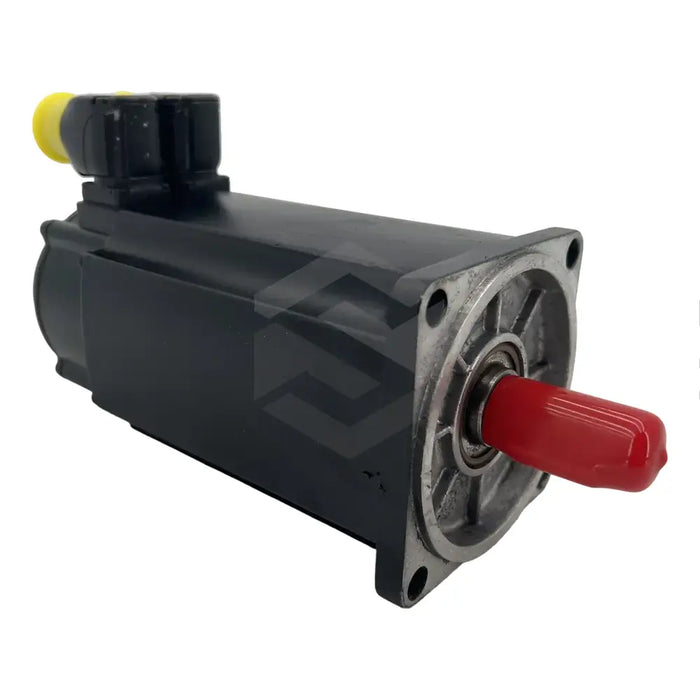

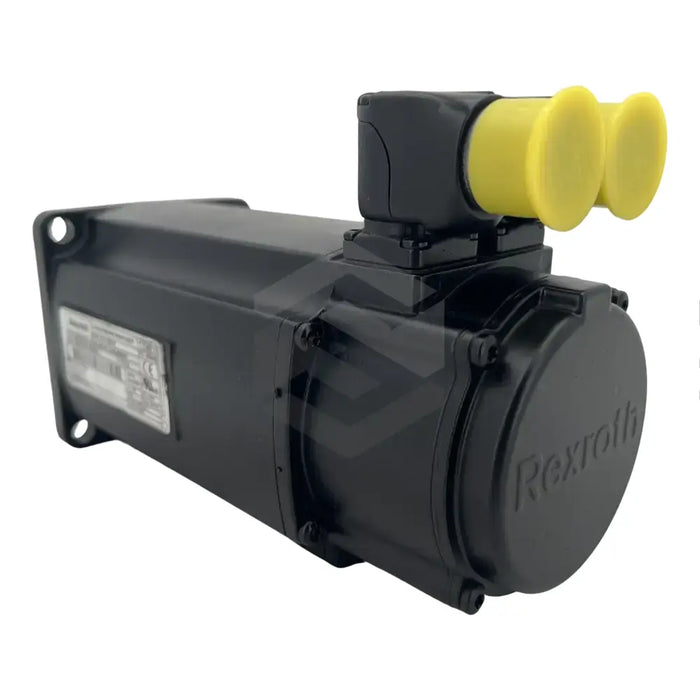

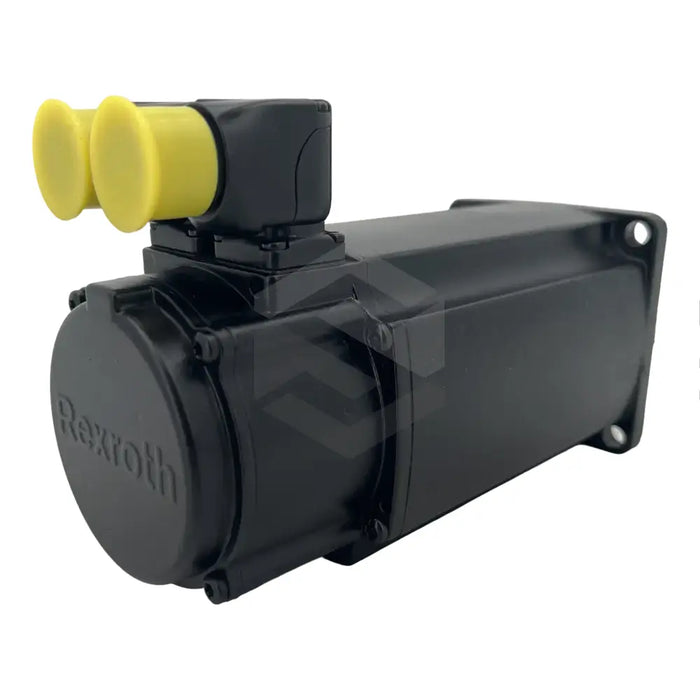

R911377312
Produced by Bosch Rexroth Indramat, the R911377312 (MSK050C-0600-NN-S3-UP0-NNNN) is a top-of-the-line synchronous servo motor noted for its extensive performance range and precision size gradations. The high torque density of this motor allows for notably compact construction. This versatile piece of machinery is widely utilized in diverse applications, including food packaging, metalwork machines, as well as printing and paper processing. It is imperative that the servo motor only operates within prescribed environmental conditions, such as temperature, protection degree, humidity, and EMC, as specified by the manufacturer. Any usage outside these ambient parameters warrants a reevaluation of performance data with the pertinent reduction factors.
The R911377312 (MSK050C-0600-NN-S3-UP0-NNNN) employs natural convection with a fan mount for cooling and features a Capacitive encoder, Singleturn Hiperface, with 16 signal periods for indirect, absolute positioning within a single mechanical rotation. The system provides an accuracy of +/- 520 and can reach a maximum encoder speed of 12,000 min-1. The servo motor's maximum current is 24.8 Amperes with a discharge capacity of 2.6 nanofarads. It operates at a maximum velocity of 6000 min-1 and offers a maximum torque of 15 Nm. The operating ambient temperature ranges between 0 and 40 degrees Celsius, and the design includes a shaft with keyway and a shaft sealing ring, but no holding brake.
