R911381146

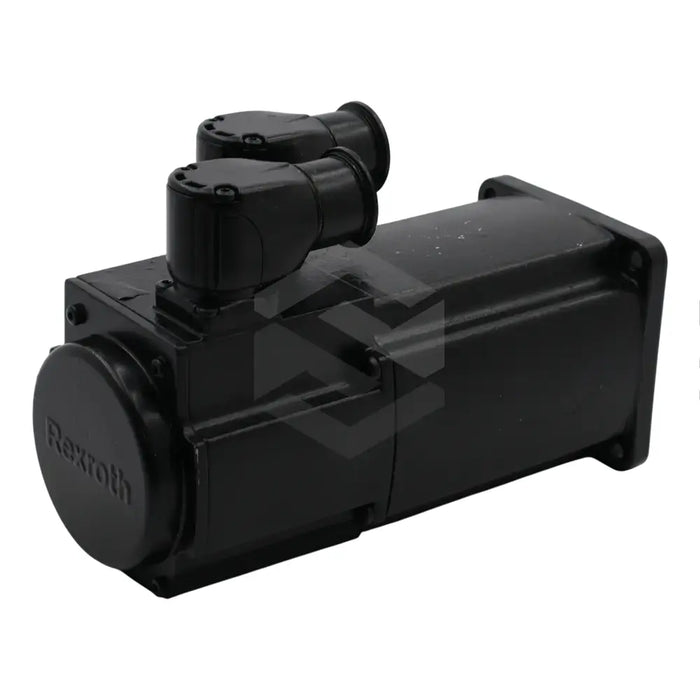

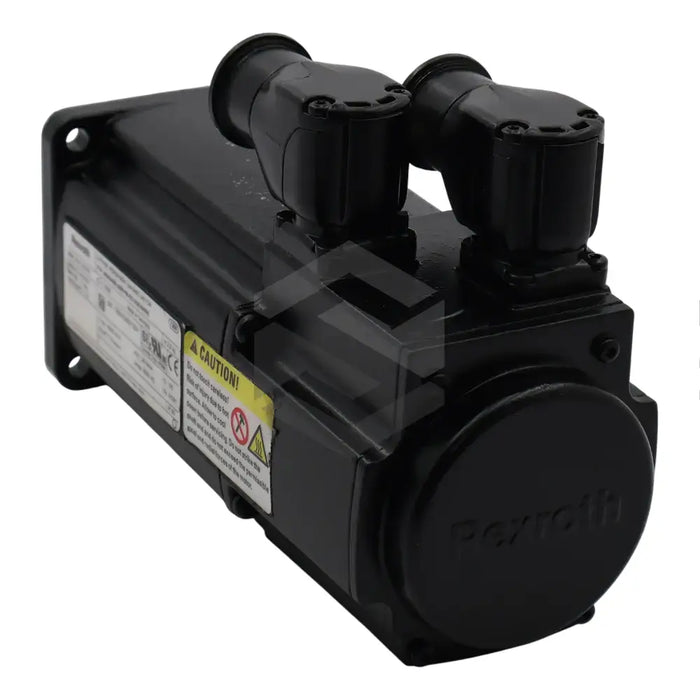

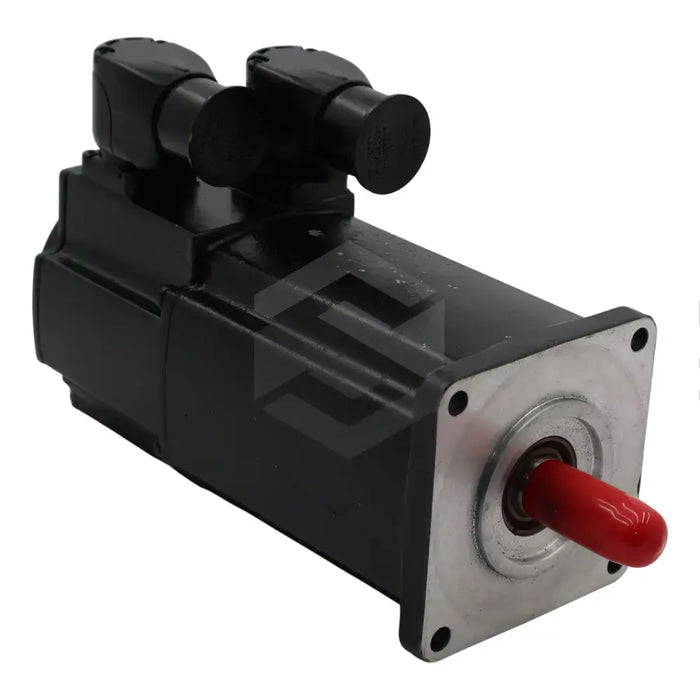

The Bosch Rexroth R911381146 (MSK040B-0450-NN-S3-UG1-NNNN), a top-grade synchronous servo motor, boasts an IP65 rating and encompasses an efficient encoder system suitable for diverse applications. It showcases a maximum speed of 7000 RPM and a superior maximum torque of 12.5 Nm. This makes it ideal for use in robotics, metal forming machinery, machine tools and food-processing machines. The defining attributes of this model include a frame size of 040, frame length B, and a motor winding code of 0450 supported with 4 motor pole pairs. Optimized to function within a temperature range of 0 to 40 degrees Celsius, it operates at a maximum speed of 6000 RPM generating sound pressure levels under 75 dB.
Equipped with a capacitive encoder featuring 16 signal periods and Hiperface protocol, the R911381146 (MSK040B-0450-NN-S3-UG1-NNNN) has a rotatable power connector of 240 degrees. With a continuous torque of 1.7 Nm and maximum torque of 5.1 Nm, this product provides continuous and maximum currents of 1.5 Amps and 6 Amps respectively. Weighing 2.8 kilograms, it integrates a 4 Nm, 24 Volts DC brake with a rated current of 0.5 Amps. It is fitted with a smooth shaft and a sealing ring to shield the motor bearings from unwanted constituents like dirt and water. Note that the motor and its control appliances should be handled by trained personnel.
