R911383809

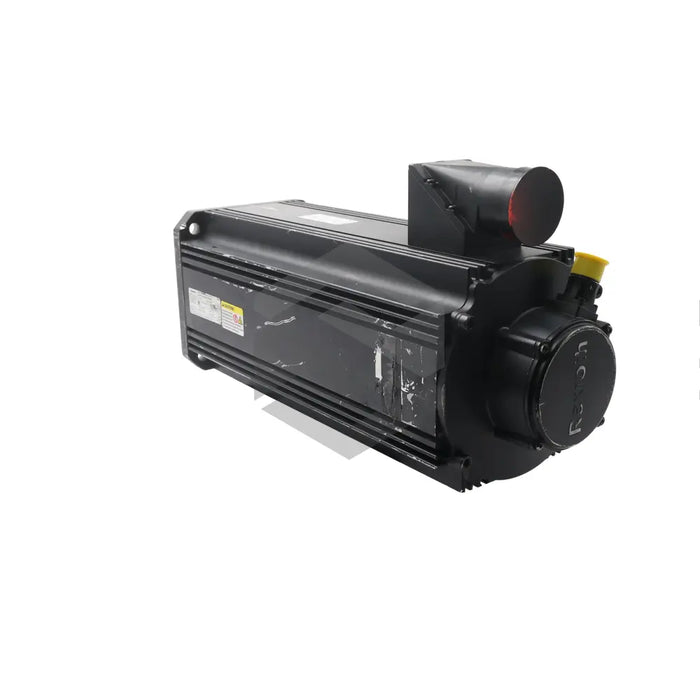

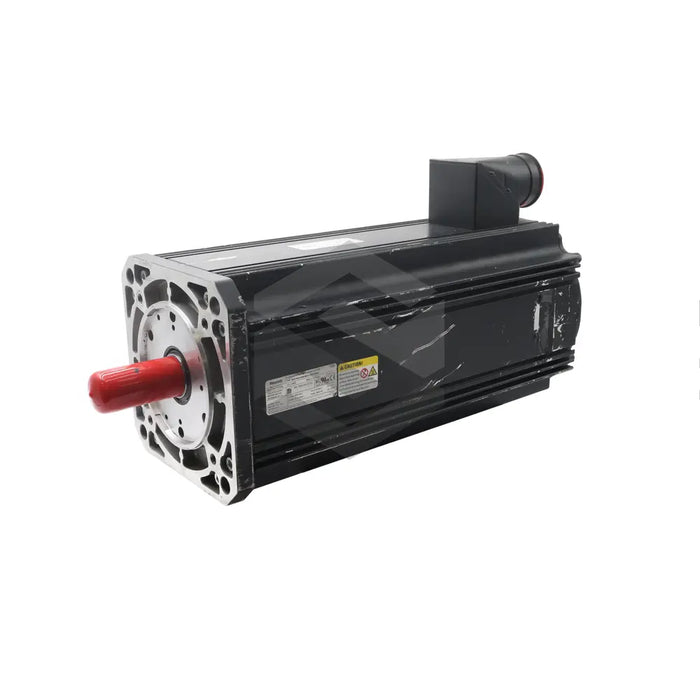

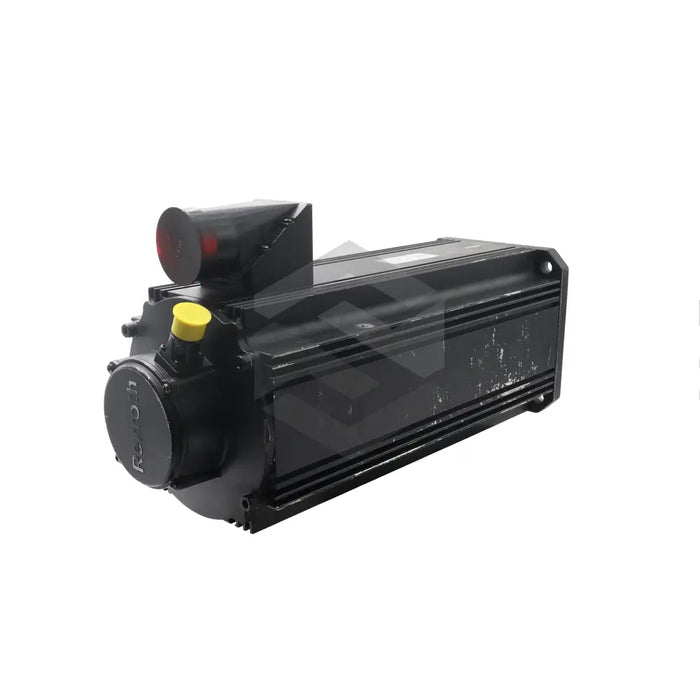

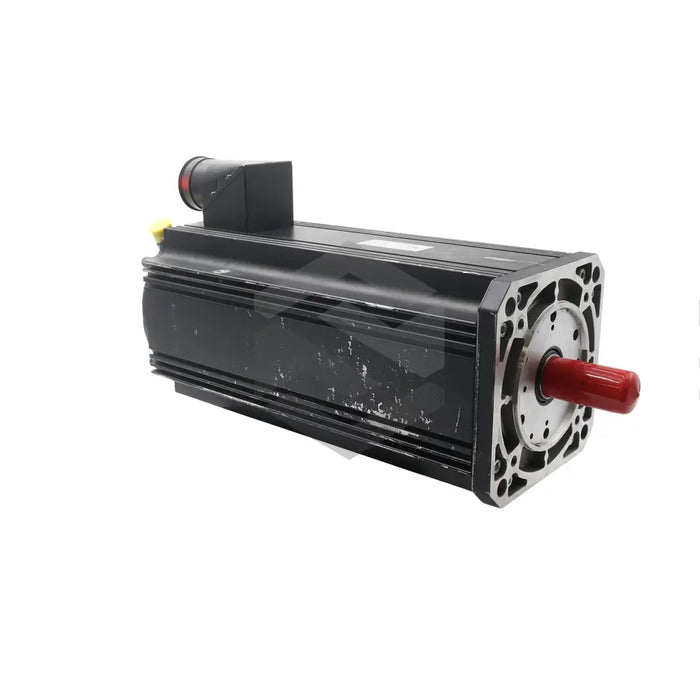

The Bosch Rexroth Indramat's R911383809 (MSK100D-0200-NN-S3-AG0-NNNN) is an industrial-grade servo motor from the acclaimed MSK product line. Encased in a standardly designed housing, this motor operates optimally with natural convection and surface cooling. The motor's key metrics include an idle continuous output torque of 48 Nm when naturally convecting and a significantly higher output of 72 Nm when surface cooled, thus indicating its capacity for high performance even from a stationary position.
The R911383809 (MSK100D-0200-NN-S3-AG0-NNNN) also features a capacitive single-turn encoder. This specialized position sensor calculates the position of the moving object through capacitance principles. The sensor unit and the encoder disk work together to create a varying capacitance, which is then translated into a position measurement and outputted as an electrical signal. This valuable data can be read by the control system, providing real-time positional accuracy. In addition, this servo motor comes with a plain shaft and conveniently located power connector on side A for easy accessibility.
