R911387101

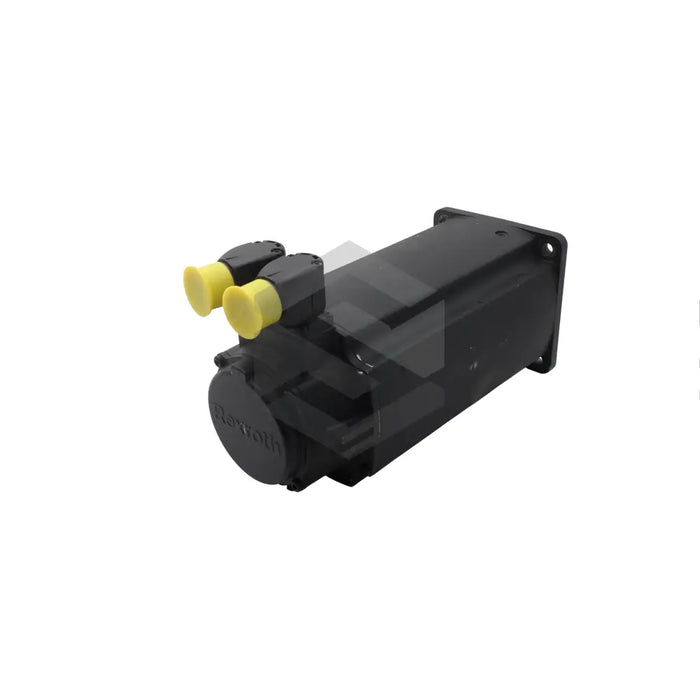

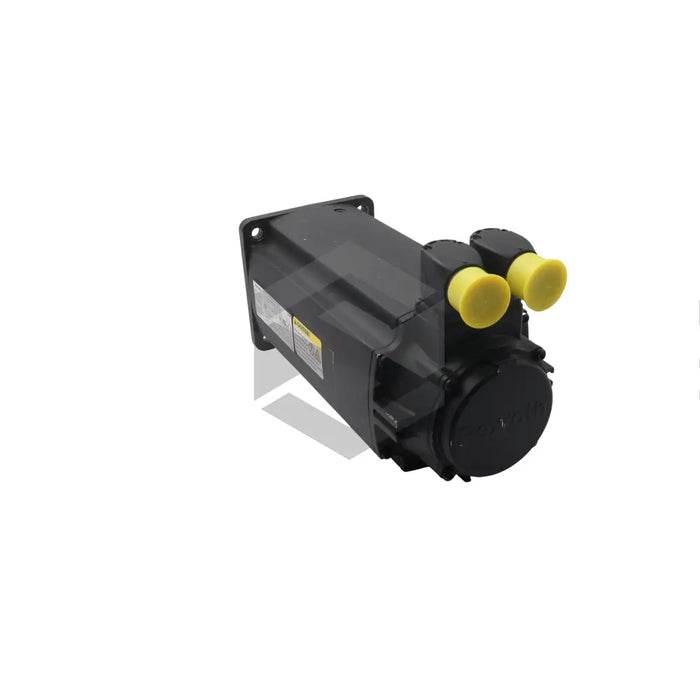

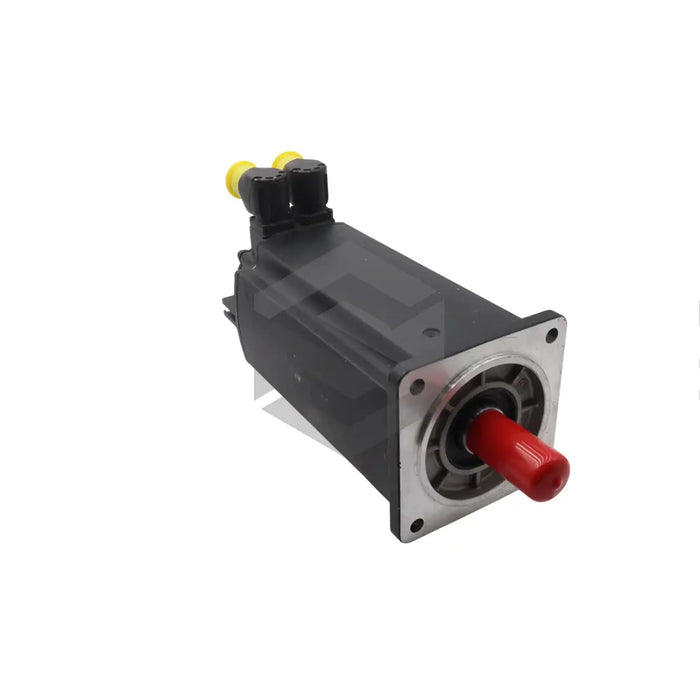

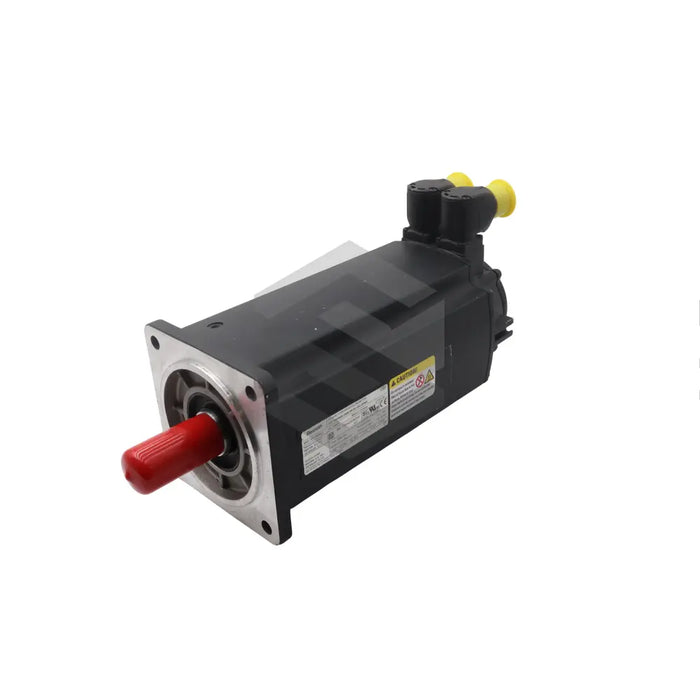

The Bosch Rexroth R911387101 (MSK060C-0600-NN-M3-UP0-NNNN) is a synchronous servomotor with a housing and output shaft protected to an IP 65 degree, in line with EN 60034-5 specifications. Primarily designed for horizontal transport and storage, it also supports horizontal and vertical installations, taking care to avoid fluid accumulation at its output shaft when vertically mounted. The motor, with a winding code of 600, is apt for natural convection cooling. It can sustain an axial shock load of 100m/s2 for a duration of 11ms. However, any alteration to its surface characteristics may make the product potentially explosive.
This device doesn’t come with a holding brake, instead it features a DIN 6885-1 standard keyway shaft with a radial shaft sealing ring which is prone to damage in case of rigorous reversing operation. The unit’s bearing, anticipated to have a lifespan of 30,000 hours as per ISO 281 standards, endures radial and axial forces; hence, its radial force should never exceed the maximum allowable limit. Temperature monitoring is conducted via a KTY 84 temperature sensor installed in the stator. It is vital to thoroughly inspect the product after a storage period of more than a year, and proceed with assembly only after removing the protection sleeves provided on its plug connections and shaft.
