R911387268

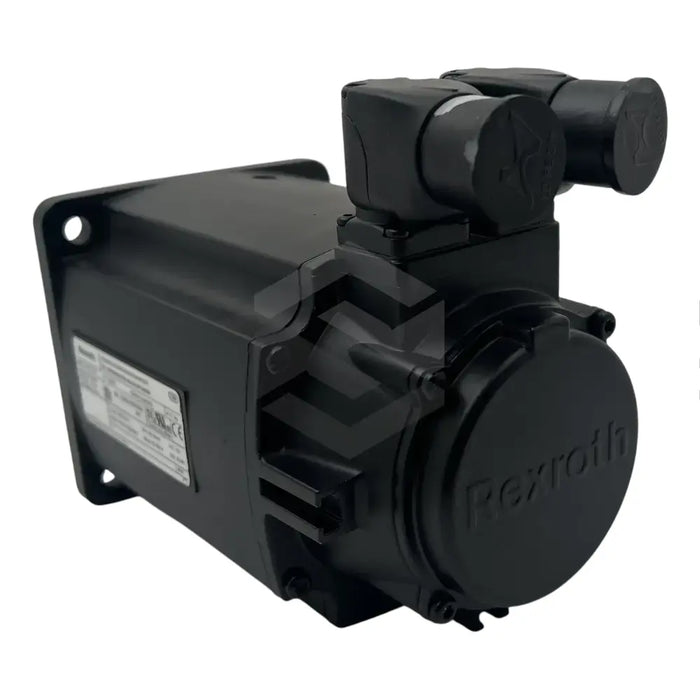

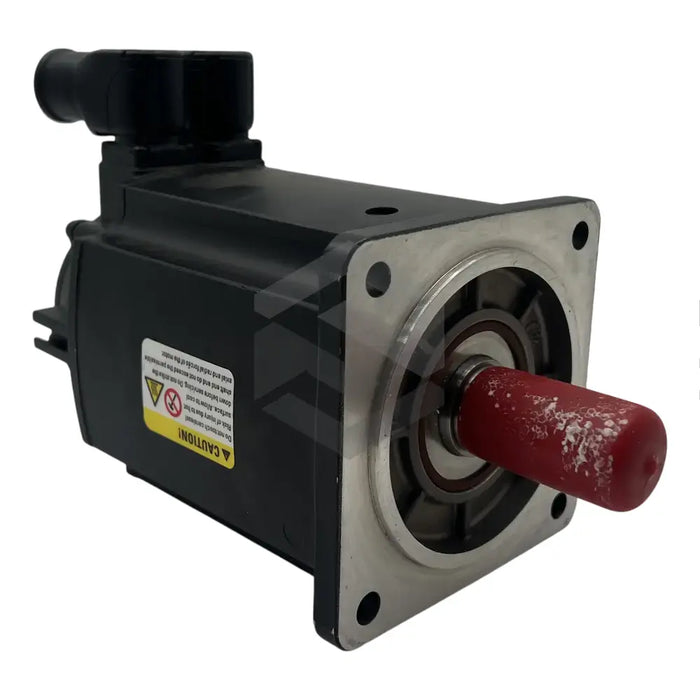

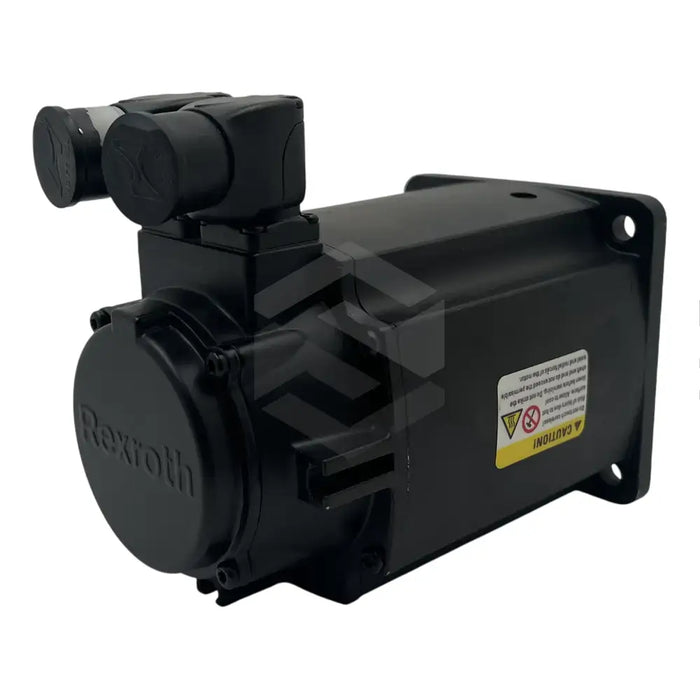

The R911387268 (MSK060B-0300-NN-S3-UP1-NNNN), produced by Bosch Rexroth Indramat, is a top-quality synchronous motor known for its high operational stability and dynamic characteristics. The brushless design and IP65 protection feature allow it to function optimally in varying conditions. Notably, it is created for professional use in different automation sectors as either a servo or main drive motor. For safety and effectiveness, the motor must only be setup, handled and stored horizontally by highly-trained individuals, following the provided user manual carefully. Prior to operation, the rotor's protective covering must be removed and the drive controller should be correctly parameterised. Further, observe the recommended height boundary of 1000 MSL for the motor's installation together with producer-approved modules.
Although the R911387268 (MSK060B-0300-NN-S3-UP1-NNNN) weighs approximately 6.4 kg (excluding attachments), it's important to note that it integrates a 10 Nm holding torque through an electrically-operated brake. Designed for use with the GTM and GTE series gearboxes, it incorporates a standard bearing with a keyway-shaft and can endure substantial radial loads. Additionally, it houses a temperature sensor, an optical encoder connection, as well as a power connector for the holding brake, which rotates up to 240 degrees. The connector, shielded with an IP66/67 rating, functions effectively at a recommended temperature of 40 degrees Celsius.
30 Day Warranty
Technical Specifications
