R912001284

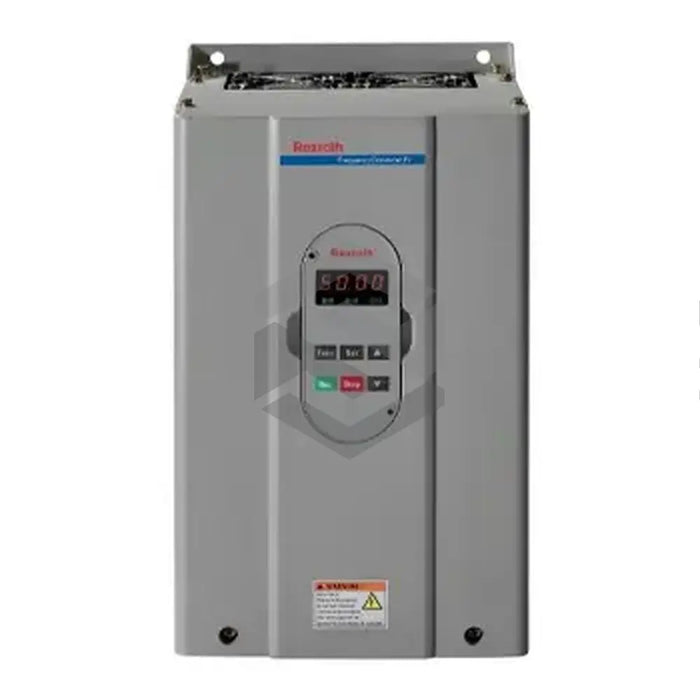

Product R912001284 (FECG02.1-5K50-3P400-A-SP-MODB-01V01) is a power-efficient frequency converter manufactured by Bosch Rexroth Indramat, a leader in motion control device production. This cost-effective converter provides an optimal solution for a 5.5 kW electrical motor. Engineered for U/f operation, the FECG02.1 model thrives in challenging environmental conditions and is applicable in various fields. With dimensions of 125mm x 220mm x 176mm, its installation is easy and convenient, requiring standard mountings and screws. It has IP 20 protection and constantly uses 13 A of rated current. Our model can function using a 3-phase AC 380-480 V power supply module.
The R912001284 (FECG02.1-5K50-3P400-A-SP-MODB-01V01) model operates within a temperature range of -10 to +40 degree Celsius, without compromising on rated data. It includes a 4-digit LED display that illustrates frequency, output current, voltages, etc. The model possesses a 3.5 kg mass and uses a status LED to indicate rotation direction and operating status. The model applies magnetic-flux type PWM modulation and employs Bosch Rexroth's V/f control technology. Available from the Servo Supplier, only qualified personnel are permitted to initiate the commissioning of the unit. All accessories used should be from the same manufacturer to guarantee maximum performance and longevity of the product.
