R912001286

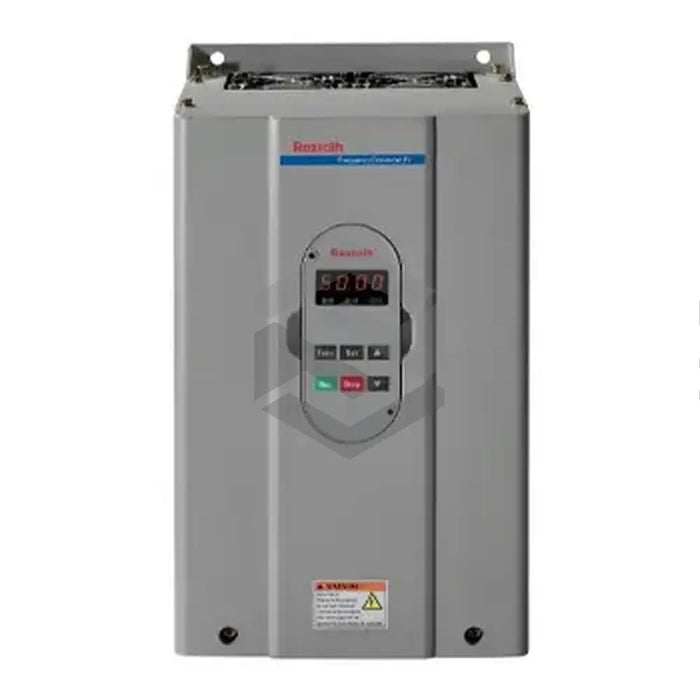

The R912001286 (FECG02.1-11K0-3P400-A-BN-MODB-01V01), built by Bosch Rexroth Indramat, is a novel frequency converter offering robust performance for applications that require operation in harsh conditions. This model, part of Rexroth Indramat's commendable line-up of automation products, was specifically engineered to drive an 11 kW electric motor, consuming 24 A current, fed from an alternating current supply ranging between 380 to 480 V—with a tolerance of -15%/+10%.
This frequency converter operates an output frequency between 0 - 599 Hz and carries an overload capacity of 200% for 1 second and 150% for 60 seconds. Its communication capabilities rely primarily on a Modbus interface; however, installation of a PROFIBUS interface remains optional. Most notably, it features an automatic energy-saving function, adapting efficiently to the load-dependent V/f curve. Safely encased within an IP20-rated enclosure, the model R912001286 (FECG02.1-11K0-3P400-A-BN-MODB-01V01) necessitates placement within a proper control cabinet. Further, it utilizes a PID controller to boost drive efficiency, and provides status updates through digital output. With a net weight of 10.7 kg, this model also includes a 4-digit LED display to monitor output frequency, voltage, and current values.
