R912001299

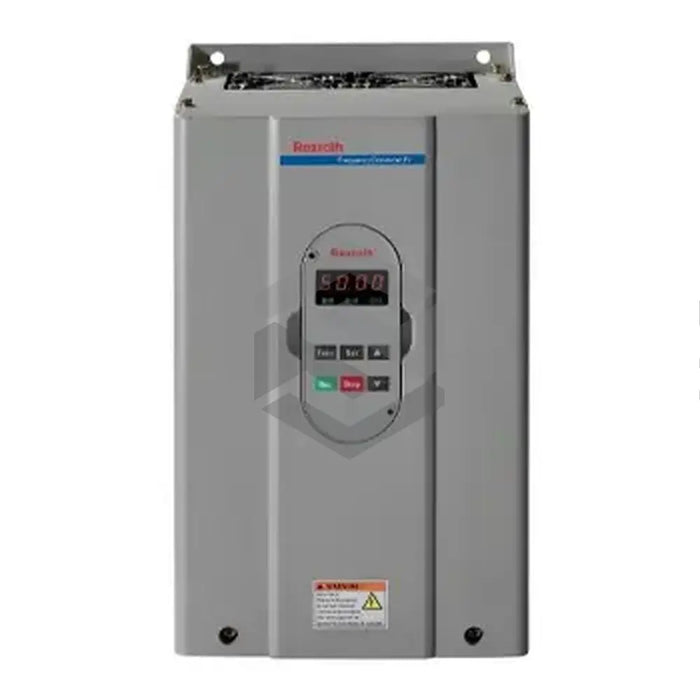

The R912001299 (FECP02.1-11K0-3P400-A-BN-MODB-01V01), produced by Bosch Rexroth Indramat, is a high-performance frequency converter unit tailored for all types of industrial motion control tasks. This efficient system is designed for controlling the V/f ratio and should be installed inside a machine's control panel. Equipped with an operation panel, it offers user-friendly navigation. Special features like current no-trip control, constant voltage control, fault reset, and a DC braking option for precise stopping and starting make this model reliable and efficient.
The unit's power rating stands at 11 kW with a continuous rated current capacity of 24 A. With an adjustable output frequency ranging from 0 to 599 Hz, the system is specifically designed to work with a three-phase connection between 380 VAC and 480 VAC. Digital outputs relay system status messages. The R912001299 (FECP02.1-11K0-3P400-A-BN-MODB-01V01) unit employs a PID controller and maintains a high frequency setting tolerance. Pulse-width modulation is adjustable across eight steps, and a start-up torque of up to 150% can be achieved. With features like the automatic energy-saving system, automatic PWM frequency adjustment, and an integrated step switching mechanism, the R912001299 (FECP02.1-11K0-3P400-A-BN-MODB-01V01) ensures top-tier performance, while offering compatibility with engineering software.
