R987109635

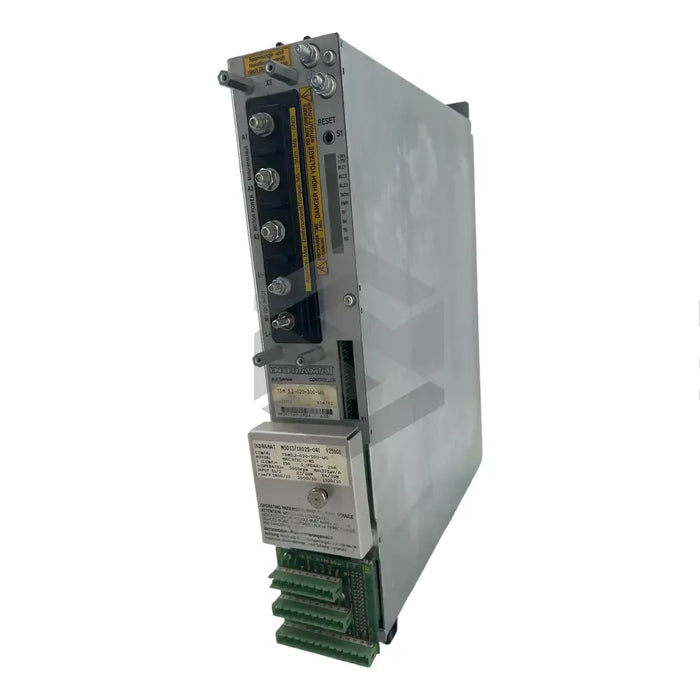

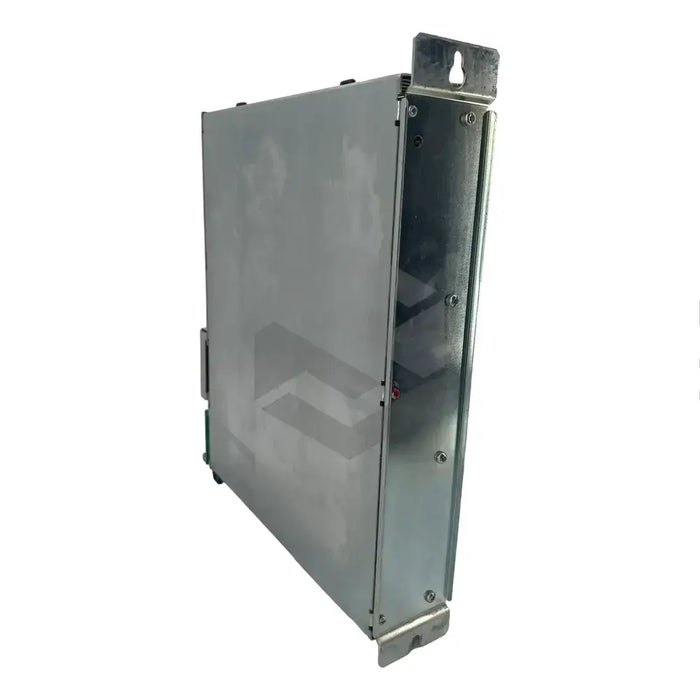

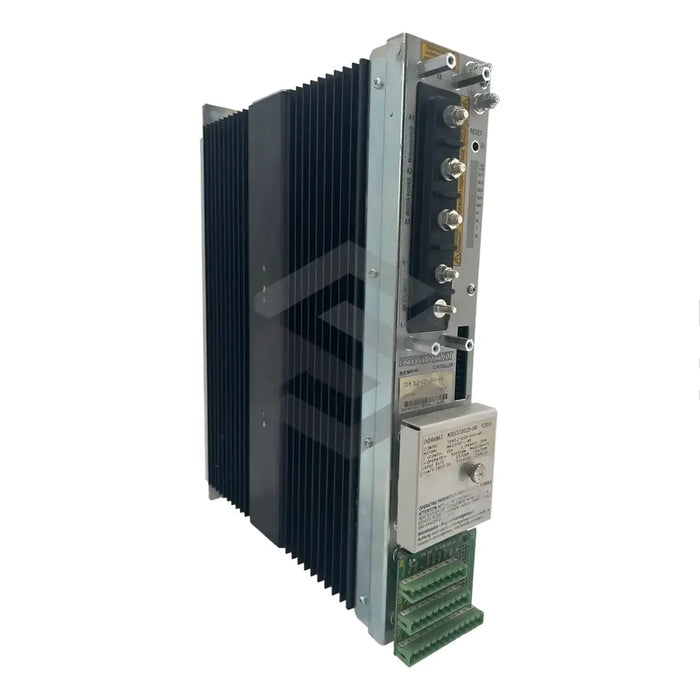

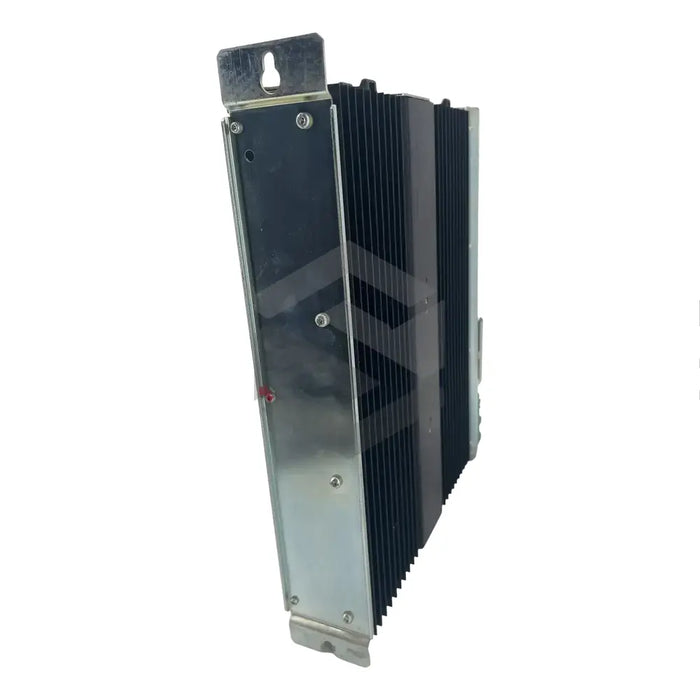

Created by Bosch Rexroth Indramat, R987109635 (TDM 3.2-020-300-W0) is a TDM servo drive module, specifically in the TDM3 series, used to control Indramat MAC servo motors. Renowned for their high accuracy, these motors are ideal for various applications including woodworking, automated systems, and NC machine tools. The TDM modules are factory-tuned, enhancing both reliability and performance. The drives themselves belong to the Indramat ANAX series and range from the common (TDM 1.2 and TDM 1.4) to the rare (1.3 and 3.3). The latter are only repairable due to their rarity.
The R987109635 (TDM 3.2-020-300-W0) is built to military specifications and its hardiness allows for a lifespan exceeding 30 years before it requires any servicing. Having an extraordinary DC link circuit voltage rating of 300 volts and a current rating of 20 amperes, this optimally efficient drive module is designed to operate in an environment with an ambient temperature of 5.0 to 45.0 degrees Celsius. Its cooling function relies on natural convection thus necessitating proper ventilation if mounted inside the control cabinet. It's important to understand that the drives in the ANAX series like the Indramat R987109635 (TDM 3.2-020-300-W0) are purposed to provide motion control in assembly lines, printing presses, packaging machines, and machine presses.
