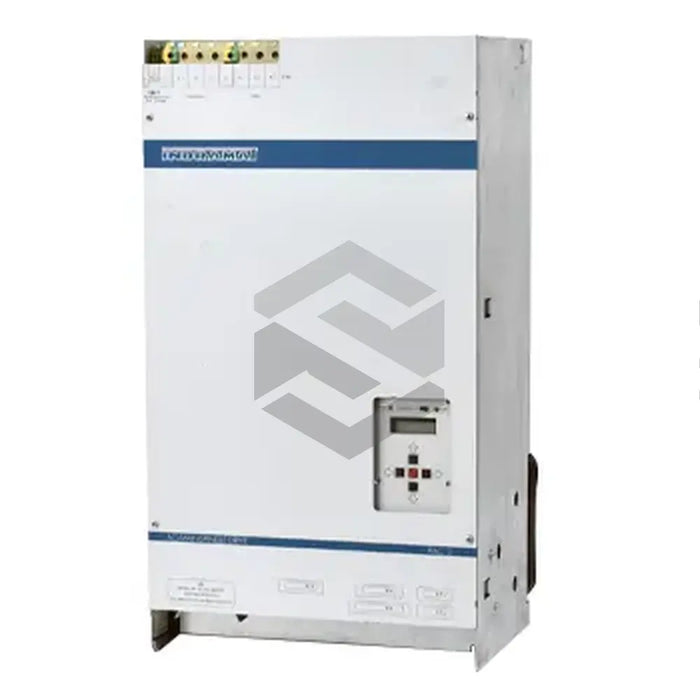

P image of RAC 3.5-100-460-A00-W1-220

RAC 3.5-100-460-A00-W1-220

by Bosch Rexroth Indramat
$14,822.35 - $14,822.35
$14,822.35
$14,822.35 - $14,822.35
$14,822.35

Available, Shipping Varies

The Bosch Rexroth RAC 3.5-100-460-A00-W1-220 main spindle drive controller offers reliable and precise control of the 1MB and 2AD series of motors. With a continuous power output of 10-30kW, this controller supports a wide speed range, and its built-in position control loop ensures accuracy. Unique features include independent spindle positioning and C-axis operation. This series 3 and design 1 controller is equipped with a fan for cooling and a programming module. The rotor's position is recognized with fine resolution, and the unit, intended for control cabinet installation, has a comprehensive connector for motor feedback. Rated for a supply voltage of 3 x 380 to 460V and current of 70A, it can function effectively from 5°C to 45°C without data restriction. Adhering to DIN VDE 0160 specifications, the controller includes a heat-venting lid and calls for a 160mm gap above and below when installed in a cabinet.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Name

RAC 3.5-100-460-A00-W1-220 Main Spindle Drive Controller

Manufacturer

Bosch Rexroth

Compatible Motors

1MB and 2AD series

Continuous Power

10 to 30kW

Series Code

3

Design Code

1

Speed Range

Broad

Position Control

Internal loop

Functionality

Positioning spindle independently, operating as a C-axis

Cooling Method

Mounted Fan

Feature

Programming module at the bottom

Ship-ability

Worldwide

Rotor Position Precision

High

Installation

Control cabinet

Housing Contains

Heatsink for fan and power electronics

Motor Feedback Interface

X3 Connector

Rated Supply Voltage

3 x 380 to 460V

Rated Frequency

50/60Hz

Continuous Current Rating

70A

Operating Temperature

5°C to 45°C

Applicability

Humidity-endangered areas

Manufacturing Standards

DIN VDE 0160

Air Slits Location

Lid

Power Dissipation

Depends on the workload

Maintenance Requirement

Clean heatsink and air shaft.
