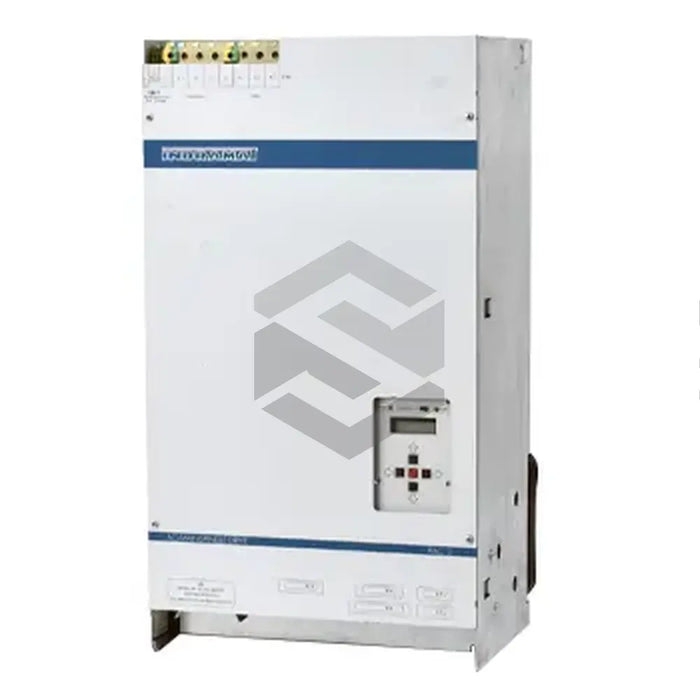

P image of RAC 3.5-150-460-A0I-W1-220

RAC 3.5-150-460-A0I-W1-220

by Bosch Rexroth Indramat
$10,548.52 - $10,548.52
$10,548.52
$10,548.52 - $10,548.52
$10,548.52

In Stock, Ships Fast

The RAC 3.5-150-460-A0I-W1-220 is a spindle drive controller created by Bosch Rexroth Indramat, suitable for use in numerically controlled machine tools. This controller has an internal position control loop with a broad space range, a rotor position resolution of 1/4 000 000th of a revolution, and a speed set point of +/- 10 Volts. Its electronics draw power from a supply voltage rated at 3 x AC 380 and 460V, operating at a frequency of 50/60Hz. An integrated emergency-stop circuit and optional incremental encoder output for C-axis operation enhance its versatility. The RAC 3.5-150-460-A0I-W1-220 is designed for operation in temperatures between +5 and +45 degrees Celsius, at altitudes up to 1,000 meters. It comes with a built-in cooling fan and offers protection against objects larger than 50mm penetrating it. The controller's ideal humidity condition matches DIN 40 040's "F" rating.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Spindle Drive Controller

Model

RAC 3.5-150-460-A0I-W1-220

Feature

Internal Position Control Loop

Current Type

150A

Voltage Supply (Power Electronics)

3 x AC 380, 460V

Frequency

50/60Hz

Application

Numerically Controlled Machine Tools

Rotor Position Resolution

1/4 000 000th of a Revolution

Speed Set Point

+/- 10 Volts

Emergency-Stop Circuit

Integrated

Additional Interface

Incremental Encoder Output for Position Control with C-Axis Operation

Operating Temperature

+5 to +45 Degrees Celsius

Maximum Operating Temperature

55 Degrees Celsius

Altitude

Up to 1,000 Meters

Cooling System

Built-In Fan

Humidity Range

F according to DIN 40 040

Penetration Protection

Objects Greater than 50mm

Supply Voltage (Control Electronics)

AC 220V/50…..60Hz

Heat Emission

Yes.
