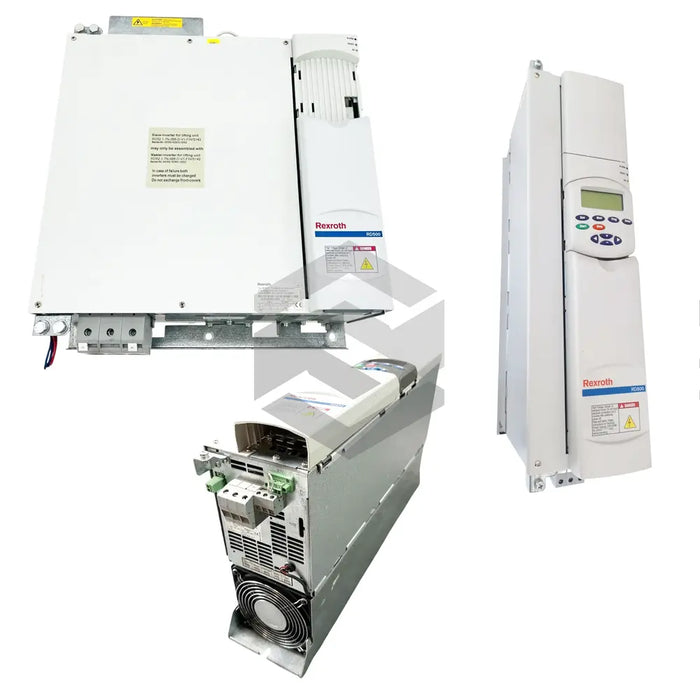

RD52.1-4B-007-L-V1-FW

by Bosch Rexroth Indramat
Request a quote
The Bosch Rexroth Indramat's RD52.1-4B-007-L-V1-FW is a RD52 series drive controller with an integrated radio interference suppression filter complying with level A1 of EN 55011. It employs forced air cooling, operates in temperatures from 0 to 40 degrees Celsius, and has a drive output derating of 2.5% per K between 40 and 50 degrees Celsius. With a cooling air requirement of 0.03 cu. m/s and power loss of 0.33 kW, it can be mounted rearwards with the heat sink internally or externally. The drive converter, designed for 380 to 480V AC input, uses a brake chopper to regulate the voltage when the load supplies energy back to the intermediate circuit, with a continuous power rating of 3.8 kW and 18 kW. Rated for outputs of 7.5 kW at a 4kHz pulse and 5.5 kW at an 8kHz pulse, its firmware is to be procured separately.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: RD52
  • Cooling Method: Forced air cooling
  • Permitted Ambient Temperature: 0 to 40 degrees Celsius
  • Output Derate Rate: 2.5% per K (40-50 degrees Celsius)
  • Minimum Air Requirement: 0.03 cubic meters per second
  • Drive Power Loss: 0.33 kilowatts
  • Mounting Position: Rear
  • Integrated Filter: Radio interference suppression (EN 55011 level A1)
  • Voltage Input: 380 to 480 Volts AC
  • Brake Chopper: Yes
  • Brake Chopper Power rating: 3.8 kilowatts (continuous), 18 kilowatts (peak)
  • Rated Output at 4kHz: 7.5 kilowatts, 18 Amps (rated), 31 Amps (peak for 0.5 seconds)
  • Rated Output at 8kHz: 5.5 kilowatts, 13 Amps (rated), 26 Amps (peak for 0.5 seconds)
  • Stand By Power: 24 Volts
  • Firmware: Ordered separately
