RD52.1-4B-030-L-V1-FW

Request a quote

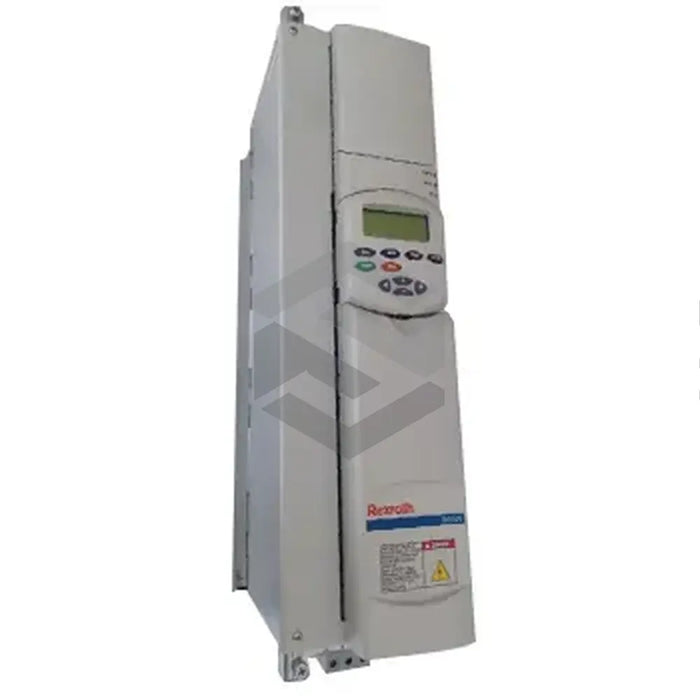

The Bosch RD52.1-4B-030-L-V1-FW is a universal drive converter equipped with a built-in brake chopper. Operating on an voltage range of 380-480 Volts AC, it maintains a nominal output of 30 kilowatts, while dissipating 1.1 kilowatts. The drive incorporates forced air cooling and allows for a range of additional functional customizations. One such feature is its 24-volt standby power that enables parameterization of data sets and continued operation of field buses even in the absence of primary power supply. Adherence to safety directives is mandatory to prevent possible electrical shocks or injuries. The necessary firmware is ordered separately, and drive commissioning can be facilitated through an optional user panel or the RDwin software. The device bears an IP20 rating and weighs approximately 36 kilograms.
30 Day Warranty
Technical Specifications
  • Product: Bosch RD52.1-4B-030-L-V1-FW Universal Drive
  • Type: Converter Based Drive
  • Drive Converter Voltage: 380 to 480 Volts AC
  • Power Dissipation: 1.1 Kilowatts
  • Cooling System: Forced Air Cooling
  • Nominal Drive Output: 30 Kilowatts
  • Additional Functions: 24 Volts Standby Power
  • Connection Recommendation: X83 in a Floating Manner
  • Firmware: Ordered Separately
  • Commissioning Options: Optional User Panel or RDwin Software
  • Industrial Protection Rating: IP20
  • Weight: Approximately 36 Kilograms
