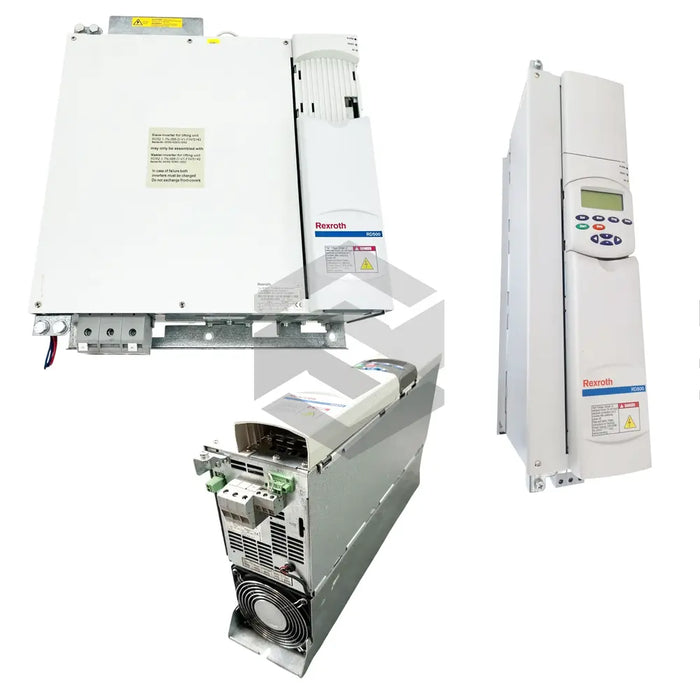

The Bosch Rexroth Indramat RD52.1-4N-007-D-NN-FW is a 7-kilowatt rated output, converter-based drive without a brake chopper. With a voltage rating of 380 to 480 Volts AC, it handles three-phase input and tolerates a ±10% input voltage variation. Firmware for the drive is orderable separately to align with the application. The drive’s properties are declared on its type label. It includes a plug-through cooler, carries a weight of 5.5 kg, and has a power loss of 0.33 kilowatts during operation. Performance at rated values is assured if ambient temperature stays within 0 to 40 degrees Celsius. Drive output derates at 2.5%/K between 40 – 50 degrees Celsius, while operation exceeding 50 degrees Celsius may cause malfunction. Designed to be installed indoors with an IP20 rating, it also complies with the A1 interference suppression rating to EN 55011 / EN 61800-3 standards. Installation should be run by a qualified person to ensure reliability.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Code: RD52.1-4N-007-D-NN-FW
  • Type: Drive
  • Rated Output: 7 Kilowatts
  • Converter Base: Yes
  • Brake Chopper: No
  • Voltage Rating: 380 to 480 Volts AC
  • Phases: Three-Phase
  • Input Voltage Variation: ±10%
  • Firmware: Ordered Separately
  • Cooler Type: Plug Through
  • Weight: 5.5 Kilograms
  • Rated Power Loss: 0.33 Kilowatts
  • Recommended Ambient Temperature: 0 to 40 Degrees Celsius
  • Temperature Derating: 2.5%/K for 40-50 Degrees Celsius
  • Use Above 50 Degrees Celsius: Not Recommended
  • Protection Rating: IP20
  • Installation Requirement: Qualified Personnel
  • Radio Interference Suppression: A1 Rating EN 55011 / EN 61800-3.
