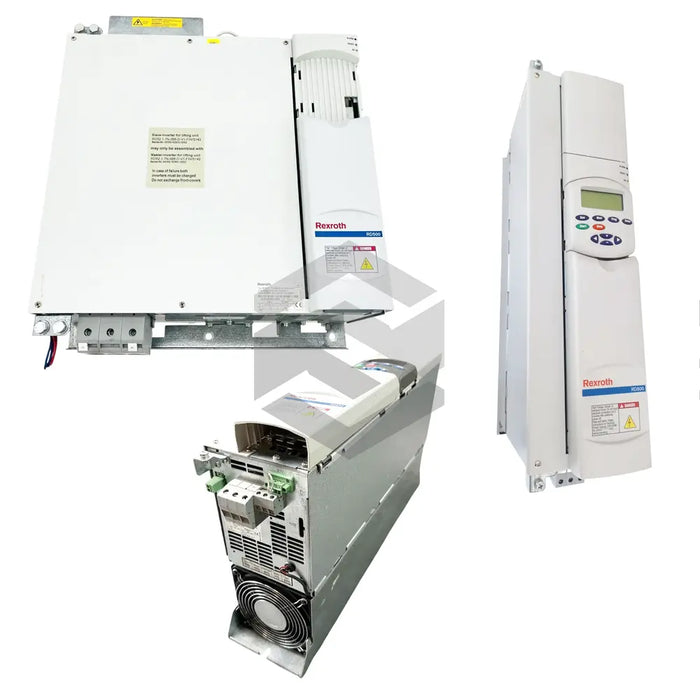

RD52.1-7N-007-L-V1-FW

Original price $8,672.63 - Original price $8,672.63
Original price
$8,672.63
$8,672.63 - $8,672.63
Current price $8,672.63
In Stock, Ships 3 - 5 Days
Request a quote
Bosch Rexroth Indramat's RD52.1-7N-007-L-V1-FW is a specialized drive converter, capable of producing 7.5 kW power at a fixed 460V with an 18 Amps current consumption. Its operation is reliant on factors such as a humidity level of less than 90% and a maximum temperature of 40 degrees Celsius, with cooling facilitated through air conditioning. This model follows the Flux Vector Control approach, boasting an overload capability of 130% for a full minute and 170% for one second. Maintaining a contamination level of 2, the RD52.1-7N-007-L-V1-FW emphasizes avoiding condensation to prevent short circuit potential. Absent of a braking chopper, it has a 24V standby power supply. Users can monitor and adjust operations through a multilingual 4-line graphical operator panel, which can also store converter settings for easy transferability. With a nominal efficiency of 0.97-0.98, this EMC-certified RD 500 series converter should be operated as per manufacturer instructions.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: RD52.1-7N-007-L-V1-FW
  • Power Output: 7.5 kW
  • Rated Current Consumption: 18 Amps
  • Operating Voltage: 460 V
  • Relative Humidity: Not more than 90%
  • Operating Temperature: Not more than 40 degrees Celsius
  • Contamination Level: 2
  • Control Method: Flux Vector Control
  • Overload Capability: 130% for 60 seconds, 170% for 1 second
  • EMC Certification: Yes
  • Series: RD 500
  • Standby Power Source: 24 volts
  • Control Panel: Tracking control panel, 4-line graphical display
  • Nominal Efficiency: 0.97 to 0.98
  • Languages Supported: Multiple
  • Data Storage: In operator panel.
