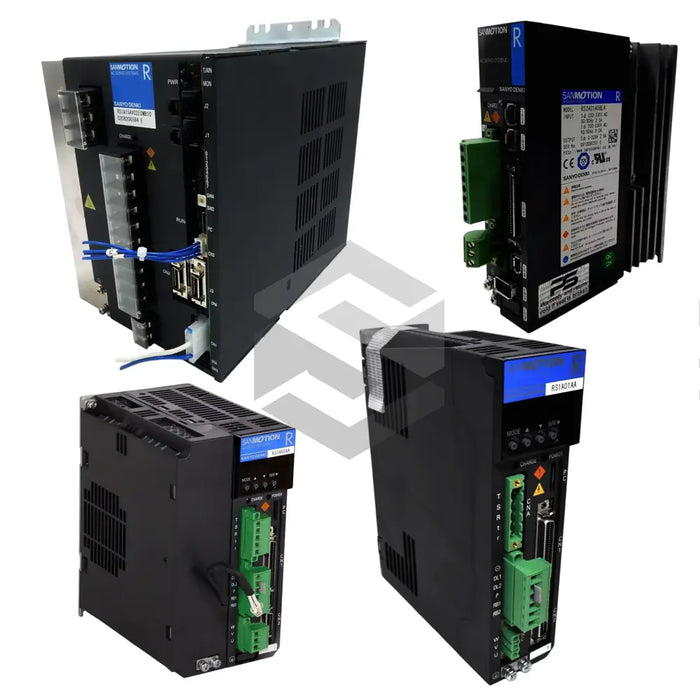

RS1A30AE

The Sanyo Denki RS1A30AE drive within the R SANMOTION Servo Drives series offers high-precision motion control in a compact industrial package. Manufactured by Sanyo Denki, the RS1A30AE is engineered to deliver reliable performance in packaging, robotics, and precision motion control systems. Featuring an input supply of 220V 50Hz/60Hz, this servo drive supports a 300W motor power rating and achieves shaft speeds up to 5000 RPM for demanding automation applications. Built to withstand routine industrial use, the RS1A30AE integrates seamlessly with standard control architectures and offers optional accessories to tailor performance to specific system requirements. Its robust construction and compliance with industry regulations ensure consistent, accurate operation in diverse manufacturing environments.

Technical specifications for the RS1A30AE prioritize both functionality and safety. The drive carries full CE Approved certification and meets Ucl approval standards for industrial electronic equipment. Protection is rated at IP00, reflecting the requirement for dedicated enclosures while maintaining compact dimensions of 32 x 20 x 21 cm for easy rack or panel mounting. The integral chuck accepts ER20 tooling with compatible collets for diameters of φ4, φ6, φ8, φ10, φ12, φ14, φ16, φ18, and φ20 mm. The motor interface supports an SDC tungsten steel grinding wheel, with an optional CBN variant available on request, accommodating a grinding range of φ3–φ20 mm. Durability is certified (Durable: Yes), ensuring the servo drive withstands the mechanical and electrical stresses of continuous operation.

Operational features of the RS1A30AE enhance system performance while simplifying maintenance. The drive’s dynamic response leverages advanced PWM algorithms to deliver precise torque control and low-speed stability essential for fine motion or grinding processes. Integrated thermal protection and current limiting safeguard the electronics and motor windings during overload or stall conditions. When integrated into precision motion control systems, the RS1A30AE communicates via standard analog/digital I/O interfaces and supports closed-loop feedback from incremental or absolute encoders. Its modular design allows users to install additional I/O expansion cards without rewiring the main power bus, reducing downtime during upgrades.

System integration is straightforward in both new and retrofit installations. As part of the R SANMOTION Servo Drives family, the RS1A30AE is compatible with existing Sanyo Denki servo amplifiers and motion controllers. Target applications include packaging machinery, industrial automation lines, and robotics where accurate positioning, repeatability, and high throughput are required. The drive’s compliance with regional wiring regulations and industry installation standards simplifies approval processes and minimizes engineering overhead. With comprehensive manufacturer support and detailed documentation, the RS1A30AE accelerates time to market and enhances system reliability.
