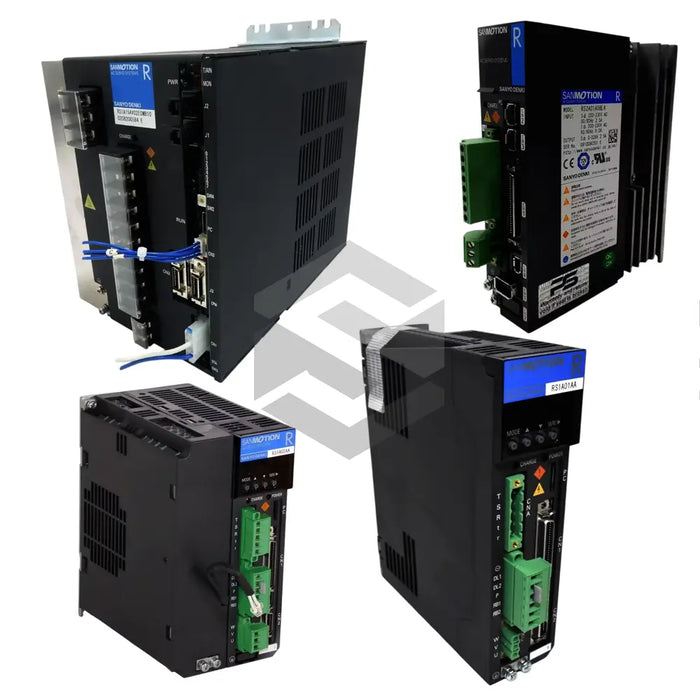

RS1L01AZA00

The Sanyo Denki RS1L01AZA00 servo drive is a high-performance unit in the R SANMOTION Servo Drives series designed for precision motion control in demanding industrial environments. It supports both analog & digital control modes and is compatible with pulse train and analog signals as input, offering seamless integration with a variety of motion controllers. Operating from an AC 200-240V supply, this drive delivers responsive torque commands while maintaining system stability. A robust fan-cooled design ensures effective heat dissipation during continuous operation. Built-in overcurrent and overvoltage protection safeguards the drive and connected equipment against fault conditions.

The RS1L01AZA00 features a rated voltage of AC 200-240V and handles a rated current range of 1-10 A depending on the model variant. Power consumption varies between 200–500 W, optimized by an overall efficiency of >90%. It accepts input signals across a frequency range of ~10–100 kHz for high-speed pulse control. Feedback interfaces accommodate both incremental and absolute encoders, ensuring accurate position and speed monitoring. The drive’s fast response servo control mode minimizes latency in closed-loop applications. Mounting is flexible, with options for panel/machine mount configurations to suit diverse installation requirements.

Operational reliability is enhanced through dual feedback channels that support real-time monitoring of motor position and velocity. The drive’s thermal management system, featuring a continuous fan cooling system, maintains safe operating temperatures between –10°C to +50°C. Overload protection mechanisms react instantly to current surges, preventing damage to internal components. The control circuitry achieves stable operation under variable loads, delivering consistent torque and speed performance. Integration of analog/digital feedback and control signals simplifies wiring topology and reduces commissioning time.

System integration is streamlined by the RS1L01AZA00’s standard communication interfaces, enabling compatibility with PLCs, motion controllers, and industrial networks. Its compact footprint and flexible mounting options facilitate retrofit and new-build installations in robotics, CNC machining, packaging machinery, and automated assembly lines. As part of Sanyo Denki’s R SANMOTION Servo Drives series, this drive meets the reliability and performance demands of modern industrial automation applications.
