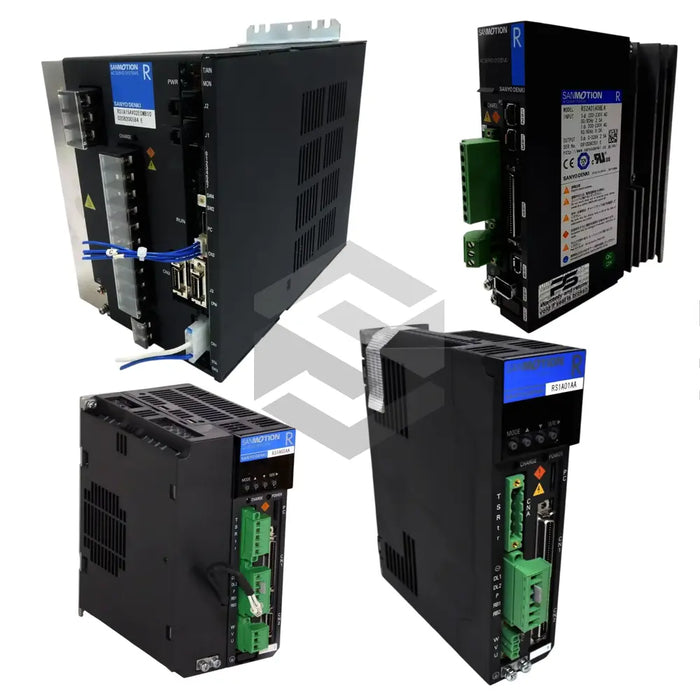

RS2A01A0AA0

The RS2A01A0AA0 servo amplifier from Sanyo Denki is an integral component of the R SANMOTION Servo Drives series, designed to deliver precise motor control and robust protection. This single-axis amplifier operates on an Amplifier Power Supply of AC200V to 230V B110%, 50/60Hz B13Hz with a Rated Power Supply of 0.2 kVA, delivering efficient power management for mid-range servomotors. The units compact design weighs 0.39 kg (including encoder), optimizing machine footprint without compromising performance. It features a Protection Standard of IP65, ensuring dust ingress protection and resistance to light water exposure in challenging industrial environments. With an Input Voltage rating of AC200V, the RS2A01A0AA0 seamlessly integrates into standard power infrastructures. The drive also incorporates a high-precision serial encoder interface, enabling closed-loop feedback and precise motion synchronization.

Performance characteristics of the RS2A01A0AA0 leverage a finely tuned electromechanical design for responsive control loops. Its Mechanical Time Constant of 2.2 ms and Motor Moment Of Inertia of 0.0247 B710^-4 kg B7m B2 deliver rapid acceleration and deceleration profiles. When fitted with a brake module, the amplifier supports a Brake Rated Voltage of DC90V / DC24V B110% and a Brake Rated Current of 0.07 / 0.27 A, yielding a Brake Static Friction Torque of 0.32 N B7m MIN for dependable holding power. The Rotor Moment Of Inertia (including Brake) is 0.0078 B710^-4 kg B7m B2, while the separate Encoder Mass is 0.0033 B710^-4 kg B7m B2, minimizing load inertia and enhancing dynamic responsiveness. System designers benefit from straightforward wiring layouts and a built-in regenerative resistor for safe energy dissipation during high-frequency operation.

Reliability is reinforced by an operating range of 0 to 40C and a maximum ambient relative humidity of 90% (no condensation), ensuring stable performance in variations of temperature and moisture. The IP65 rating underlines the devices ruggedization against dust and splashing water, making it suitable for automotive assembly, packaging machinery, and general industrial automation. Integration is simplified through standard power-and-signal connectors and a versatile encoder interface, enabling seamless communication with higher-level motion controllers. With its compact mass and robust technical specifications, the RS2A01A0AA0 provides a balanced solution for applications requiring precise torque control, rapid response, and continuous duty cycles within demanding factory environments.
