RS2A01A2MA3E10

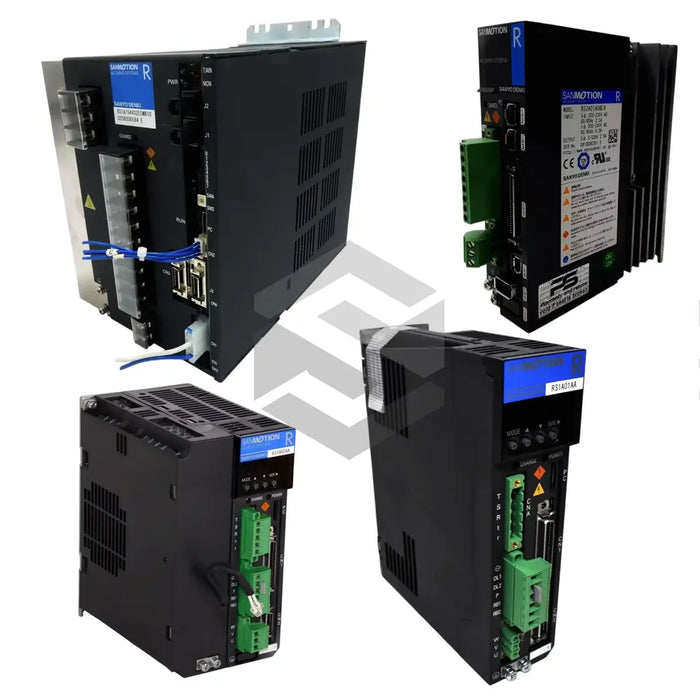

The Sanyo Denki RS2A01A2MA3E10 servo drive is a precision motion control device within the R SANMOTION Servo Drives series, designed for demanding industrial automation applications. Manufactured by Sanyo Denki, this model delivers a Power Input range of AC200V to 230V +10%/-15%, 50/60Hz ±3Hz with a Rated Armature Current of 0.51 Arms and supports Rated Output from 30W to 1000W. It features a Rated Speed of 3000 RPM via PWM-based sinusoidal control, enabling accurate speed, torque, and position regulation. The drive's compact unit integrates a 5-digit LED display and dual USB interfaces on the front panel for setup and daisy-chain connectivity, with operator keys and an analog monitor connector protected under a plastic cover.

The RS2A01A2MA3E10 technical specifications underscore its robust electrical and mechanical design. Its Amplifier Mass is 0.9 kg (Single Axis), and it supports both single-axis (RS1A01A□) and multi-axis (RR1A01AAB00) configurations. Key parameters include Continuous Torque At Stall of 0.108 N·m, Rotor Moment Of Inertia of 0.0247 x 10⁻⁴ kg·m², and Torque Constant of 0.201 N·m/Arms. The Voltage Constant Per Phase is 7 mV/min⁻¹ ±10%, while Phase Resistance measures 12 Ω. The brake subsystem accepts Brake Rated Voltage of DC90V/DC24V ±10%, and the integrated dynamic brake and regeneration circuits enhance energy efficiency during deceleration.

Operationally, the drive accommodates an ambient temperature range of 0 to 40°C with up to 90% maximum humidity, no condensation, and elevation below 1000 meters. An internal cooling fan ensures reliable operation up to 55°C in hot and humid environments. Protective functions include overcurrent, overload, overheating, over voltage, and over speed shutdowns. The unit's dimensions (160 x 40 x 130 mm) and variable weight (0.75–0.8 kg depending on regenerative resistor presence) support easy mounting in compact control cabinets. Output voltage is adjustable from 0 to 326 Volts with a maximum output current of 2.5 Amps, providing versatile drive performance across a range of motor sizes.

System integration is streamlined for industrial motor control networks, with support for serial encoders and compatibility with Sanyo Denki Setup Software via USB. The digital operator simplifies status display, alarm diagnostics, test operation, and parameter setting without additional tools. Designed for applications in robotics, packaging machinery, CNC systems, and factory automation lines, the RS2A01A2MA3E10 offers precise, repeatable motion control, meeting the exacting demands of modern industrial processes.
