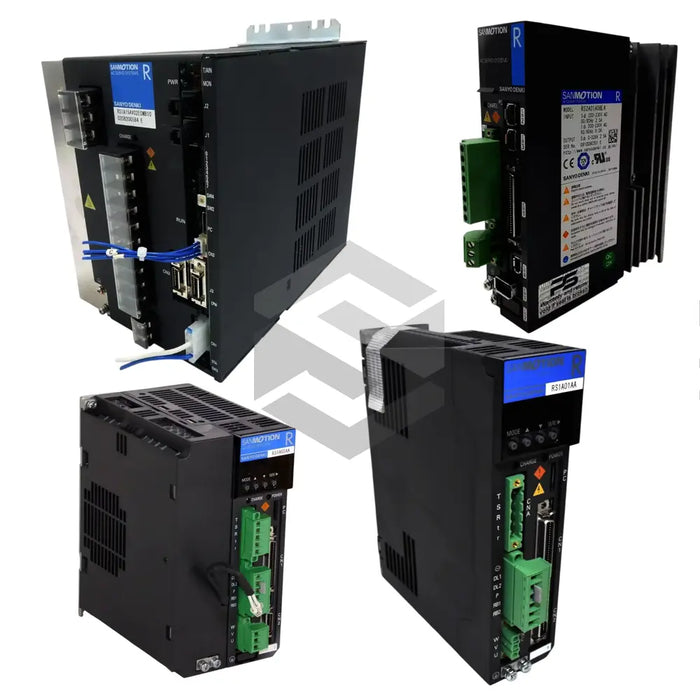

RS2E01A0KA4

The Sanyo Denki RS2E01A0KA4 is a high-performance servo drive in the R SANMOTION Servo Drives series, designed for precision industrial automation. It operates on a Power Supply of 100 VAC and incorporates a 17bit serial absolute encoder for accurate motion tracking. This compact unit features a Dimensions package with a 40 mm motor flange, enabling installation in space-constrained environments. With a Rated Speed of 3000 min⁻¹ and a Rated Torque of 0.255 N·m (2.27 lb·in), it delivers consistent performance in demanding applications. The drive’s lightweight Motor Mass of 0.51 kg (1.13 lb) further simplifies integration and handling.

The RS2E01A0KA4 excels in technical capability, offering a Peak Torque At Stall of 0.86 N·m (7.6 lb·in) and an Overload Capacity of 150% of rated torque for 10 sec to handle transient load surges. Its Rotor Moment Of Inertia of 0.066 × 10⁻⁴ kg·m² (0.023 lb·in²) ensures agile response and precise control. Control flexibility is provided by multi-mode operation: Control Mode options include position, speed, and torque control to suit various dynamic profiles. The drive uses a reliable CPC screw lock type Connector Assembly for robust electrical connections. Rated to function between Operating Temperature 0 to 40 °C (32 to 104 °F), it maintains stable performance in standard industrial environments.

Operationally, this servo drive offers significant benefits, including a selectable Brake Option for safe stops and holding torque in vertical or inertial loads. Its compact design, emphasized by the Dimensions and 40 mm Motor Flange Size, minimizes footprint and enables dense machine layouts. The drive is compatible with other modules in the family—Compatible Amplifiers such as RS3A01A2HA4—facilitating modular system expansion. Quick acceleration and deceleration capabilities reduce cycle times, while precise torque delivery enhances process quality in applications like pick-and-place and indexing.

Integration of the RS2E01A0KA4 into automated systems is streamlined by its standard 100 VAC interface and straightforward mechanical mounting on the 40 mm flange. It connects seamlessly with higher-level controllers and supports common industrial communication protocols. Ideal for robotics, packaging machinery, and semiconductor equipment, this drive adapts to diverse use cases within the R SANMOTION Servo Drives series. Engineers will appreciate its balance of torque density, control versatility, and compact footprint when designing next-generation automation solutions.
