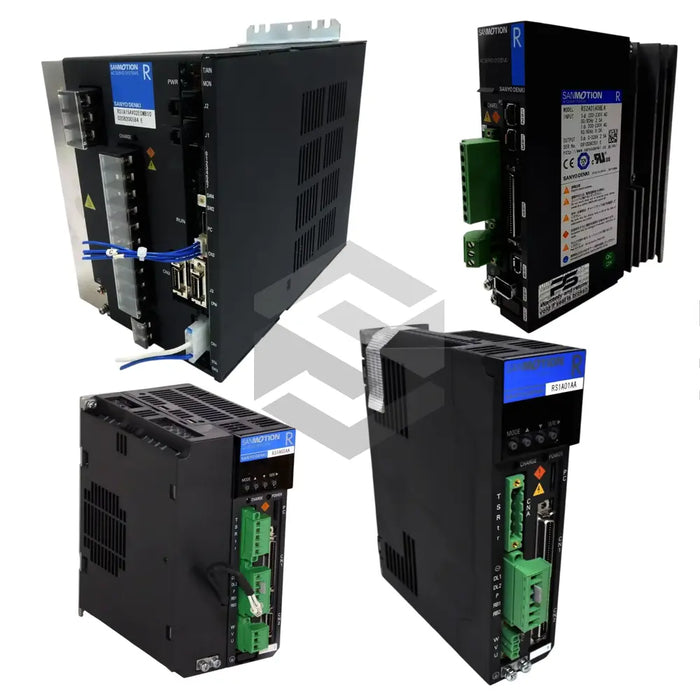

RS2K04A2HA5

The Sanyo Denki RS2K04A2HA5 servo drive is a robust solution within the R SANMOTION Servo Drives series, designed to deliver high-performance motion control for demanding industrial automation. This unit features a Main Circuit Power Supply of 48 VDC and incorporates a Control Circuit Power Supply of 24 VDC to ensure stable operation across a variety of systems. Equipped with an Amplifier Capacity of 40 A, the drive supports precise current regulation to its connected load, while the Units Controlled parameter is set to 1 Axis for dedicated one-axis control. The drive leverages an EtherCAT Interface for seamless Motor Configuration, enabling fast, deterministic communication in complex machine networks. Constructed as an Advanced Model servo motor control, the RS2K04A2HA5 embodies the latest enhancements in power density and integration.

In performance-critical environments, the RS2K04A2HA5 excels through its Speed Control ratio of 1:5000, delivering fine resolution for high-speed positioning and low-speed torque control. The integrated Absolute Encoder provides absolute position feedback without the need for homing sequences, augmenting system uptime and accuracy. Designed to withstand harsh operating conditions, the drive offers Shock Resistance of 19.6 m/s² and Vibration Resistance of 4.9 m/s² at 10–55 Hz, ensuring stable operation even under mechanical stress. The Interface Type of Photo Relay facilitates reliable signal isolation, while the absence of a built-in regenerative resistor ("Built-in Regenerative Resistor: None with delay circuit") streamlines thermal management and simplifies cabinet design. The collective architecture optimizes efficiency and dynamic response for rapid acceleration and deceleration cycles.

Reliability is reinforced by an Operating Temperature Range of 0 to 40°C, supported by an internal air-cooled system that prevents overheating during extended duty cycles. The drive’s ability to deliver Up to 120 W of continuous power ("Total Weight Support: Up to 120 W") to a single axis makes it ideal for compact installations where space and efficiency are paramount. Integration into larger control schemes is straightforward via standard EtherCAT connectivity and photo relay interfaces, reducing engineering lead time. Typical applications include industrial robots requiring precise path following, semiconductor manufacturing equipment demanding nanometer-level positioning, and CNC machinery executing complex cutting, drilling, and shaping operations. With its blend of advanced control features and rugged build, the RS2K04A2HA5 servo drive delivers a dependable automation solution across a wide array of industrial sectors.
