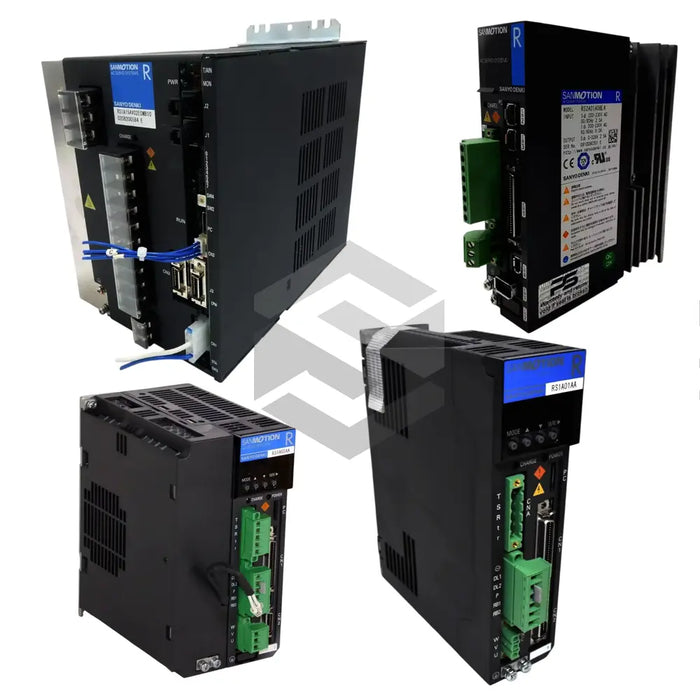

RS2W03A0KL 10XXXXC01

The Sanyo Denki RS2W03A0KL 10XXXXC01 servo drive delivers a robust motion control solution in the R SANMOTION Servo Drives series, integrating high-efficiency components and advanced control functionality to meet demanding industrial automation requirements. This rack-mountable amplifier provides a Rated Output Current 3 A with a Rated Voltage 200 V, employing PWM control modulation for precise motor drive performance. A built-in operator and five-digit display enable real-time parameter adjustments and status monitoring without additional hardware. The integrated Ether CAT interface supports high-speed communication at approximately 100 MB/s, ensuring seamless interoperability with modern industrial networks. Compliance with CE and RoHS standards underscores its suitability for global deployment in diverse manufacturing environments.

The RS2W03A0KL 10XXXXC01 features a comprehensive array of technical specifications designed for reliability and adaptability. The Application Type Servo Drive/Controller designation highlights its core function in precision motion control. Communication is facilitated via a Communication Protocol that supports standard industrial buses such as CANopen, while the Signal Interface standard servo feedback interface ensures accurate position and velocity data exchange. The Cooling Method Forced air cooling keeps internal temperatures under control in continuous operation, supported by an integrated heatsink for added thermal management. With an overall Efficiency >90%, this drive minimizes energy losses. It is rated for Environmental Rating –10°C to +55°C ambient conditions and is restricted from outdoor operation, maintaining performance in typical factory climates.

Operational robustness is achieved through multiple layers of protection and advanced control algorithms. The amplifier incorporates Protection Features overcurrent, overvoltage and temperature protection, safeguarding both the drive and connected motor from fault conditions. A model-based tracking control algorithm provides dynamic disturbance suppression and improved target response across varying load profiles. In real time, the unit can automatically optimize its servo gain and filter frequency to maintain stability and efficiency. The integrated Ether CAT interface operates at up to 100 MB/s, enabling low-latency data exchange, while the five-digit LED display and built-in operator facilitate quick diagnostics and parameter tuning on the factory floor.

System integration is streamlined for industrial automation applications, with a Mounting rack/mountable enclosure that fits standard control panels. Input requirements specify 280 V at 4.1 A, with 50–60 Hz line frequency compatibility. Configuration and monitoring are supported by dedicated setup software on a host computer, enabling users to program parameters, view graphical operation trends, and perform firmware updates. Backed by a Warranty Period 12 months, the RS2W03A0KL 10XXXXC01 is ideal for machine tools, assembly lines, packaging systems, and other precision motion platforms requiring reliable, high-speed servo control.
