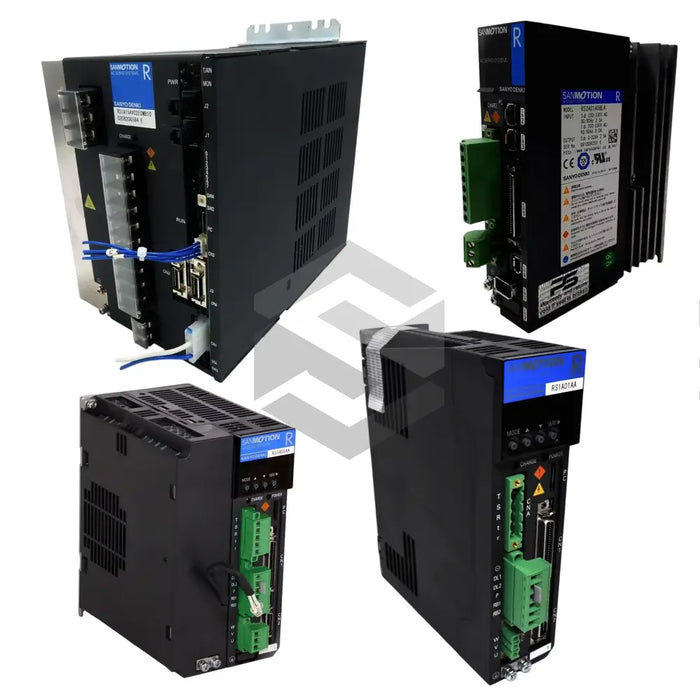

RS3A03A0AA2

The RS3A03A0AA2 by Sanyo Denki is a high-performance servo amplifier within the R SANMOTION Servo Drives series designed for precise single-axis control in industrial automation environments. This compact unit employs an IGBT-based sinusoidal PWM control system to deliver smooth and accurate motor responses while minimizing acoustic noise. Supporting position, speed, and torque control modes switchable via parameters, the drive offers versatile motion management for a wide range of applications. With a rated Amplifier Capacity of 30 A and a single-axis configuration, it provides concentrated power and precision where they are needed most. Weighing just 0.9 kg, the RS3A03A0AA2 achieves an exceptional power-to-weight ratio suitable for space-constrained control panels.

The technical architecture of the RS3A03A0AA2 features a dual-input Main Power Supply that accepts both three-phase and single-phase 200–240 VAC (+10%/–15%) at 50/60 Hz, ensuring compatibility with standard industrial power lines. The Control Circuit Power Supply mirrors this range to maintain stable internal electronics. Engineers can interface seamlessly through Analog/Pulse signals and leverage the built-in General-purpose Output (NPN sinking type) for additional control tasks. Equipped with a single controllable axis, this amplifier integrates an on-board Built-in Regenerative Resistor to dissipate excess braking energy safely, protecting the power devices from thermal stress. The drive’s Control Functions package—covering position, speed, and torque control—can be parameter-switched to suit dynamic process requirements without hardware changes.

Operational reliability is enhanced by robust environmental tolerances: the unit operates across 0 to +55°C with up to ≤90% RH (non-condensing), ensuring consistent performance in demanding factory conditions. The inclusion of a STO Function (Safe Torque Off) adds a layer of functional safety by disconnecting motor power without a full system shutdown, although no additional safety functions are provided. The drive’s lightweight Mass of 0.9 kg and compact form factor enable simple integration into existing control cabinets or machine bases. Maintenance is streamlined by the drive’s fault-reporting capabilities and standardized interface, reducing downtime and simplifying diagnostics.

Integration into industrial automation systems is straightforward, with the RS3A03A0AA2 offering plug-and-play compatibility with Sanyo Denki’s motion controllers and third-party PLCs. Its universal 200–240 VAC power acceptance and configurable Analog/Pulse Interface allow seamless replacement of legacy amplifiers without rewiring major subsystems. Ideal for robotics, CNC machines, packaging lines, and assembly automation, this servo drive delivers reliable single-axis performance with precise motion control. The unit’s lightweight profile and minimal footprint make it particularly suited for applications where space is at a premium and performance cannot be compromised.
