P image of S30301-NA

S30301-NA

by Kollmorgen
$1,752.60 - $5,587.21
$1,752.60
$1,752.60 - $5,587.21
$1,752.60

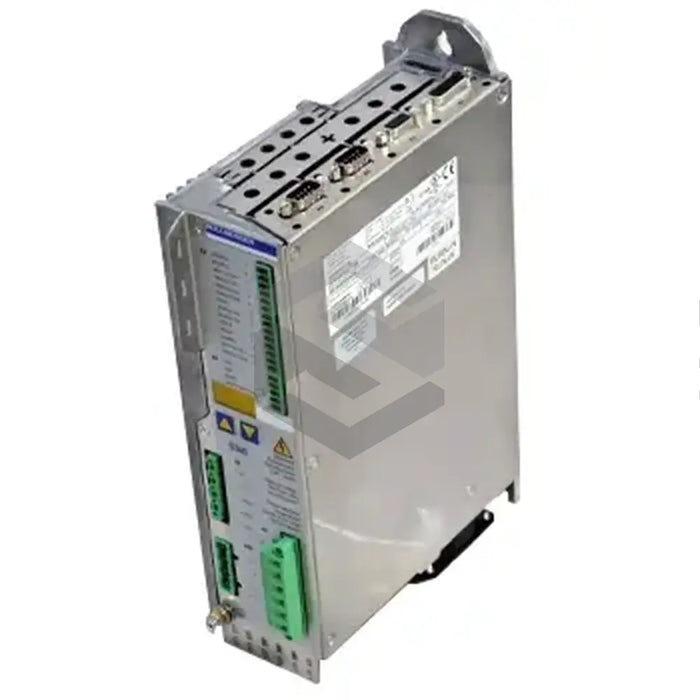

Kollmorgen's S30301-NA Digital Servo Amplifier is designed to regulate position, torque, and speed control on DC, synchronous, and servo motors. The unit operates on a 1.2 kVA input with 8.5 mH inductance, compatible with DeviceNet, SynqNet, and Sercos II expansion cards. The S30301-NA, weighing 2.7 kg with dimensions of 70 mm x 270 mm x 171 mm, comes equipped with a digital smart position controller which enables multi feedback. It also hosts a range of safety features, including an emergency stop switch, safe torque off feature, soft-start, overvoltage monitoring, and phase failure protection. The built-in software for operational settings can be manipulated through an LED display and buttons if a PC isn't available. Also included are four programmable digital inputs, two programmable analog inputs, and electrical isolation. This unit operates seamlessly on single and three-phase supply and adheres to European Standard overvoltage category III.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

Digital Servo Amplifier

Model Number

S30301-NA

Operation

Position, Torque, Speed Control

Motor Compatibility

DC Motors, Synchronous Motors, Servo Motors

Input

1.2 kVA

Inductance

8.5 mH

Configuration

Standard with expansion card compatibility

Expansion Card Compatibility

DeviceNet, SynqNet, Sercos II

Controller

Digital Smart Position Controller

Feedback

Multi

Safety Features

Emergency Stop Switch, Safe Torque Off, Soft Start, Overvoltage Monitoring, Phase Failure Protection

Product Weight

2.7 kg

Product Dimensions

70 x 270 x 171 mm (W x H x D)

Software

Inbuilt for operation and parameter settings

Controls

Three-figure LED and two buttons

Additional Features

Electrical isolation

Inputs

Four programmable digital, Two programmable analog

Power Supply

Single-phase, Three-phase

Overvoltage Category

III (According to European Standards)
