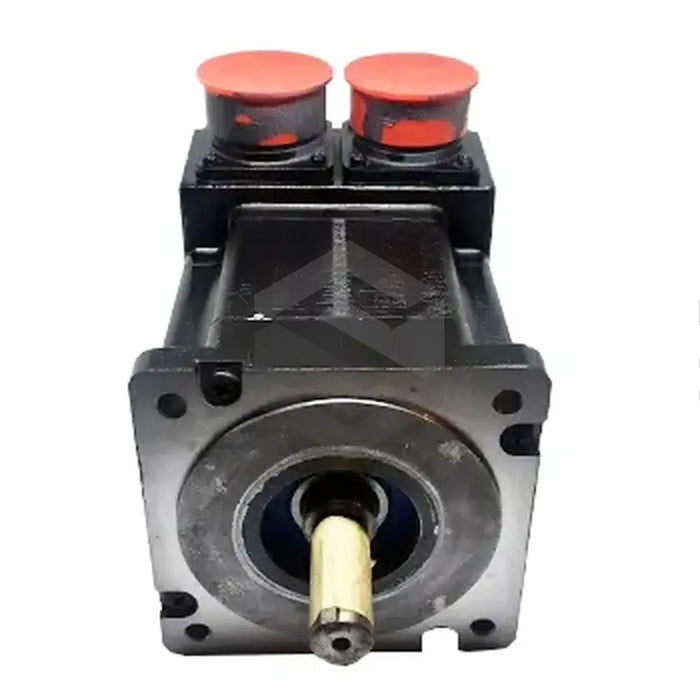

P image of S33HNNA-RNVM-00

S33HNNA-RNVM-00

by Pacific Scientific
$2,500.00 - $4,724.60
$2,500.00
$2,500.00 - $4,724.60
$2,500.00

In Stock, Ships 1 - 3 Days

Pacific Scientific brings you world-class automation aftermarket accessories with impressive value and exceptional performance. Our skilled technicians and engineers produce cutting-edge and cost-effective motion products, including servo drives, electric controllers, supply modules, servo motors, and spindle drives, all of which can be tailored to your current needs and a variety of applications. One key product, the S33HNNA-RNVM-00 motor, delivers continuous torque up to 5.3 Nm and peak torque reaching 15.3 Nm. Weighing 6.5 kgs, this motor brings a thermal resistance of 0.870C/A and possesses a thermal time constant of 27 minutes. With a continuous current at standstill of 3.5 A, this device's voltage constant is 0.94 V/kRPM, and the torque constant at 1.5 Nm/A. The motor's line-to-line resistance and inductance are approximately 5.2 Ohms and 17 mH respectively.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Pacific Scientific

Product Type

Motion Control Products

Servo Drives

Yes

Electric Controllers

Yes

Supply Modules

Yes

Servo Motors

Yes

Spindle Drives

Yes

Continuous Torque

5.3 Nm

Peak Torque

15.3 Nm

Viscous Damping Coefficient

0.047 Nm/cost-effective

Moment of Inertia

0.48 kgm3 x10-3

Peak Static Friction

0.17 Nm

Unit Weight

6.5 kg

Thermal Resistance

0.870C/A

Thermal Time Constant

27 minutes

Continuous Current at standstill

3.5 A

Voltage Constant

0.94 V/kRPM

Torque Constant

1.5 Nm/A

Peak Current

12.3 A

Line to Line Resistance

5.2 Ohms

Line to Line Inductance

17 mH

Typical Rated Torque (320V DC, 240V AC)

4.7 Nm

Typical Rated Speed (320V DC, 240V AC)

1500 RPM

Typical Rated Torque (640V DC, 480V AC)

3.6 Nm

Typical Rated Speed (640V DC, 480V AC)

3900 RPM.
