P image of S406AM-CA

S406AM-CA

by Kollmorgen
$7,681.80 - $10,596.46
$7,681.80
$7,681.80 - $10,596.46
$7,681.80

Available, Shipping Varies

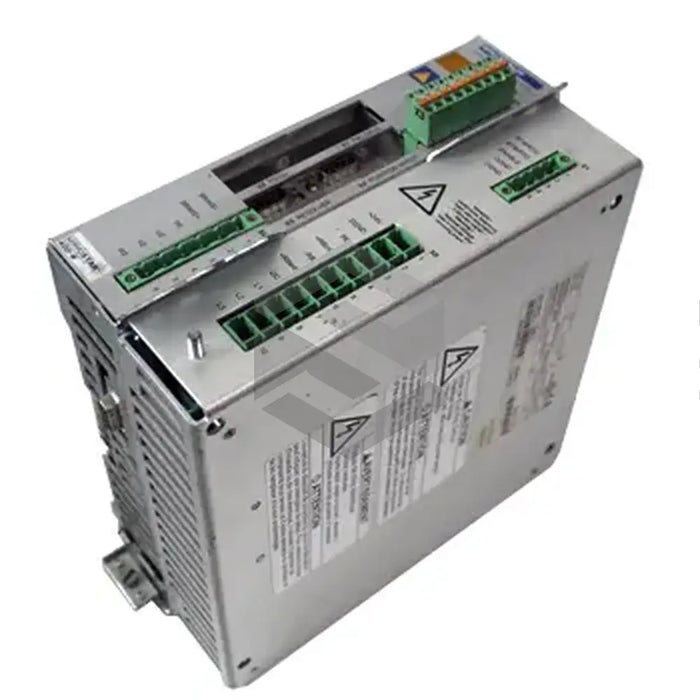

The Kollmorgen S406AM-CA servo amplifier is a powerful and versatile industrial component with a supply voltage of 230V to 400V and a maximum load of 7kVA for S1 operation. Its compact size of 100mm x 267mm x 240mm allows vertical mounting, while an overvoltage switch-off threshold is set at 450V to ensure safety. Its meticulous temperature management system regulates it to a standard 45 degrees in the control cabinet, with additional cooling measures if needed. The S406AM-CA contains a current rating of 6Arms and an integrated master module that improves functionality. The device is shielded with IP 20 protection and requires a control cabinet for optimum protection against external factors. The device features a distinct LED display that provides information on various parameters including master address and supply status. Installation requires careful earthing to avoid electrocution and it can support up to 7 axis modules.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Model

S406AM-CA

Rated Supply Voltage

230-400V

Maximum Installed

7kVA for S1 operation

Overvoltage Switch-Off Threshold

450V

Weight

3kg

Dimensions

100mm x 267mm x 240mm

Mounting Position

Vertical

Operating Cabinet Temperature

45 degrees

Current Rating

6Arms

Integrated Safety Features

Yes

Digital Control

Yes

Protection Class

IP 20

Relative Humidity

95%

Installation Elevation

1000m above sea level

Operating Temperature Range

0 to 45 degrees

LED Display

Yes

Feedback Systems

Integrated

Motor Holding Brake

Present

Thermal Sensors

Integrated

Earthing Requirement

Yes.
