S60300-EI

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

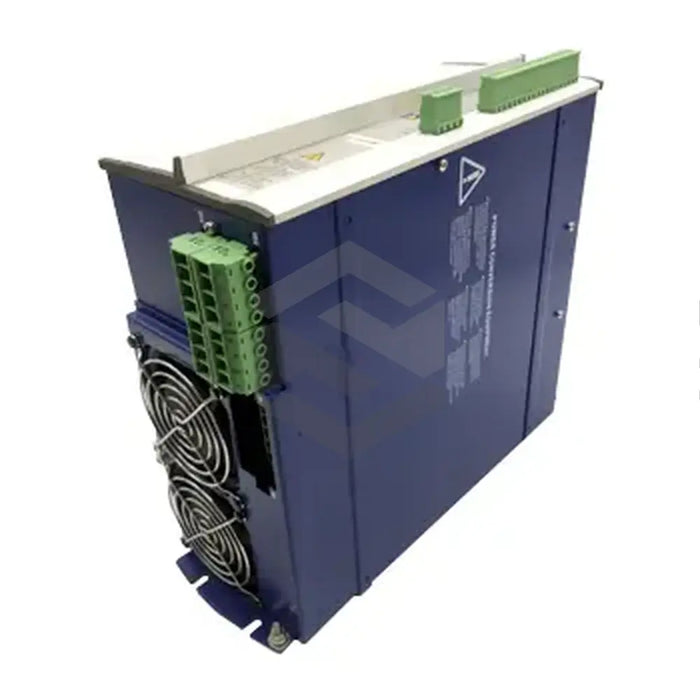

The Kollmorgen S60300-EI servo drive from the S600 Servo Drives series is a robust industrial automation component delivering a rated output current of 3A rms and a continuous installed load of 2 kVA, with a peak output current of 6A (5 s max). It accommodates a DC bus link voltage of 290V to 675V and operates on a main supply of 230...480V (50/60Hz). An integrated CANopen interface (500 kBaud) and 24 VDC auxiliary supply support reliable control functions. Enclosed in an IP20 enclosure and weighing approximately 5kg, this drive ensures flexible, indoor installation while providing enhanced dynamic performance with an 8 kHz output stage frequency.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Current Rating

3A rms

Product Type

S600 Servo Drive

Supported Voltage

230...480V

Ambient Operating Temperature (operating)

0 °C to +45 °C

Ambient Temperature (derated)

+45 °C to +55 °C

Auxiliary Supply Voltage

24 V DC (–0%/+15%)

CANopen Interface

500 kBaud

DC Bus Link Voltage

290 V to 675 V

Digital Inputs Standard

IEC 61131

Enclosure Rating

IP20

I/O Expansion Option

EI

Input Setpoint Resolution

14‑bit/12‑bit (±10 V)

Load Inductance Range

12 mH to 75 mH

Output Stage Frequency

8 kHz (16 kHz @ VDC=400 V)

Overvoltage Protection

450 V to 900 V approx.

Peak Output Current

6 A (5 s max)

Rated Installed Load (S1)

2 kVA

RS232 Interface

Integrated

Weight

5 kg approx.
