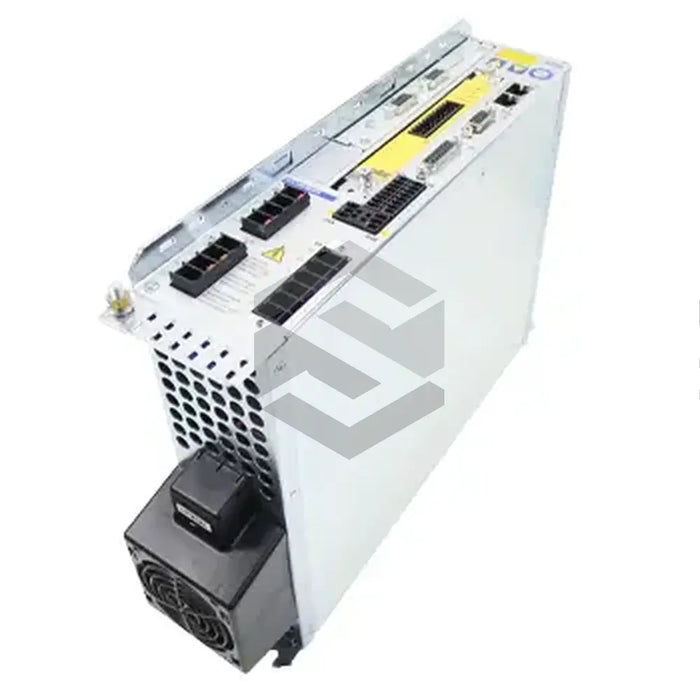

product image of a S70601-NA

S70601-NA

by Kollmorgen
$8,188.62 - $8,188.62
$8,188.62
$8,188.62 - $8,188.62
$8,188.62
Available, Shipping Varies
The S70601-NA, manufactured by industry leader Kollmorgen, belongs to their robust and reliable S700 series of digital servo amplifiers. Famous for their superior performance and quality, Kollmorgen's technology-based products are extensively used across varied sectors like robotics, aerospace, medical and defense. This specific servo amplifier, the S70601-NA, touts a voltage rating of 208-480V and a current rating of 6 Arms. Notably, it features on-board CANopen and EtherCAT, along with a standard single-channel STO. While it has no expansion card in Slot 1, the S70601-NA comprises an IGBT module output stage with floating current measurements, and a brake circuit with a dynamic power distribution. While standard brake resistors are provided, external ones may be used if needed. Highlighting its safety aspects, it offers phase failure protection, overvoltage detection, and short-circuit protection, among others. It also supports motor temperature monitoring and has an emergency single-channel safe-stop feature.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Product Line: S700 Series
  • Product Type: Digital Servo Amplifier
  • Model: S70601-NA
  • Current Rating: 6 Arms
  • Voltage Rating: 208-480V
  • Safety Features: STO, Phase-failure protection, Overvoltage detection, Short-circuit protection, Soft start
  • On Board Interfaces: CANopen, EtherCAT
  • Expansion Slot 1: Empty
  • Connections: Shielding connections direct to the amplifier
  • Fusing: User-provided
  • Output Stage: IGBT module with floating current measurements
  • Brake Circuit: Yes, with dynamic power distribution
  • Brake Resistors: Standard, with external option
  • Motor Temperature Monitoring: Yes, with compatible motors
  • Electrical Isolation: Yes, according to IEC 61800-5-1
  • Integrated Safety Features: Single-channel safe stop feature
