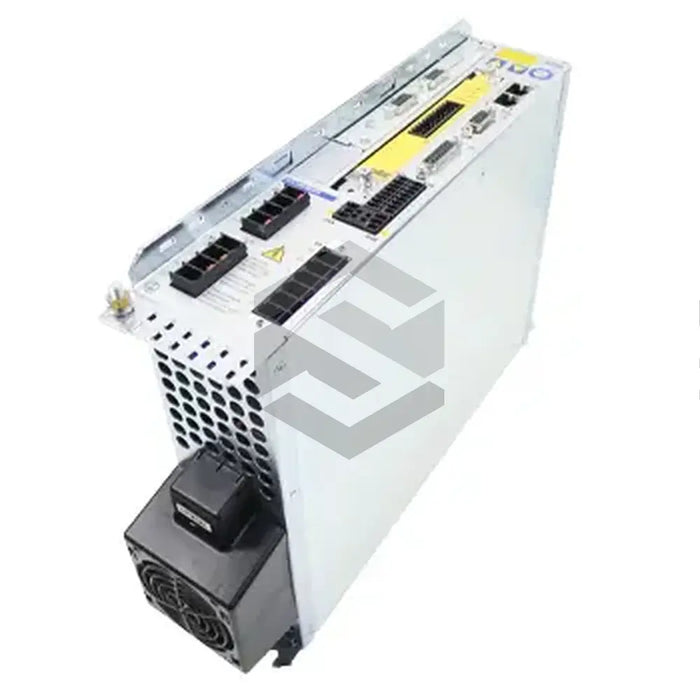

P image of S70602-PBNANA

S70602-PBNANA

by Kollmorgen
$3,213.81 - $7,757.50
$3,213.81
$3,213.81 - $7,757.50
$3,213.81
Kollmorgen, a prime manufacturer of automation motion control solutions, provides the S70602-PBNANA as part of its established S700 servo-drive range. This unit operates with 208-480 triphase AC voltage at a frequency of 50/60 Hz, supporting communication through the integrated EtherCAT or CANopen protocol interface, or the Profibus on the device's first extension card slot. It offers an RMS current output of 6000 mA, while able to sustain a peak current of 18000 mA for up to 5 seconds. The drive's settings can be adjusted with DRIVEGUI software via the RS-232 socket (X8) on a PC. The S70602-PBNANA features a single-channel certified STO (Safe Torque Off), and contains a range of integrated I/O connectors including two analog inputs and two programmable digital I/Os. The servo-drive is compatible with numerous feedback methodologies and operates effectively in temperatures ranging from 0 to 45 degrees Celsius.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Line

S700

Product Model

S70602-PBNANA

Product Type

Servo Drive

AC Line Voltage

208-480 triphase

Frequency

50/60 Hz

Communication Interface 1

EtherCAT or CANopen

Communication Interface 2

Profibus

Output RMS Current

6000mA

Output Peak Current

18000mA (Max 5 seconds)

Setup Interface

RS-232 socket (X8)

Safety Certification

Performance Level CAT 3 (ISO 13849-1), SIL CL 2 (IEC 62061)

Included Inputs-Outputs

2 Analog Inputs, 2 Programmable Digital I/Os, 4 Programmable Digital Inputs

Feedback Technologies Supported

Incremental Encoders, Sinde Encoders with BiSS, Resolvers, Sine 5V Encoders

Operating Temperature

0-45 degrees Celsius

Storage Temperature

-25-55 degrees Celsius
