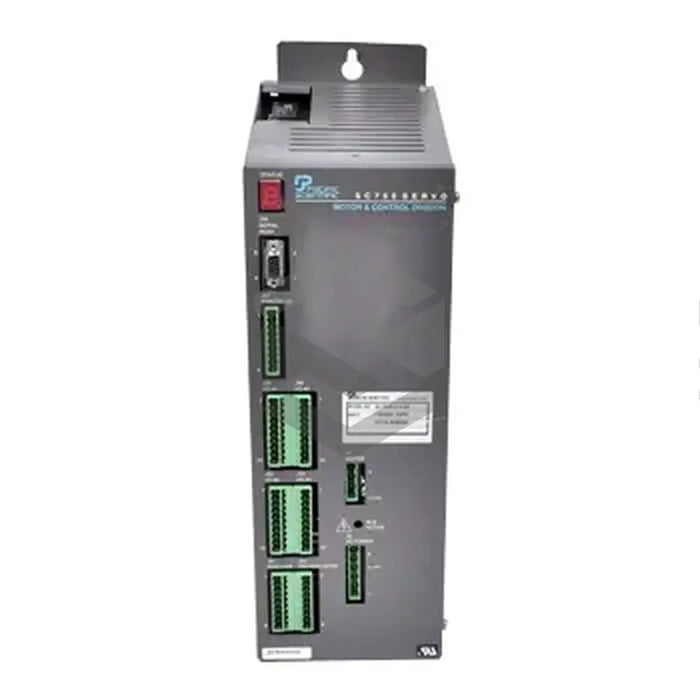

The SC752B-001-01 is a high-performance, digitally programmable servocontroller from the SC750 series, designed and produced by Danaher Motion's Pacific Scientific Automation Technology Group. This device is specifically tailored for use with Pacific Scientific's brushless servomotors, offering enhanced control of these motors' positioning, velocity, and torque. The SC752B-001-01 boasts a standalone 4-quadrant design complete with an internal power supply and a shunt regulator. It provides a continuous current of 3.8A and peak current of 7.5A, facilitated by a power level 2, and a 14-bit RDC option characterized by a +4 arcmin and 4096 pulse per revolution. Additionally, it is embedded with ServoBASIC Plus language and boasts 24k user memory. The device features comprehensive protection mechanisms like IT, low line, over-temperature protection, and MOV-protected inputs, offering a dependable and resilient solution for motor control. The controller also encompasses an insightful 7-segment display delivering up to 20 status display codes for effortless performance tracking.
Technical Specifications
  • Manufacturer: Pacific Scientific
  • Product Type: Digital Brushless Servocontroller
  • Series: SC750
  • Model: SC752B-001-01
  • Design: 4-Quadrant Standalone
  • Construction: Fully Enclosed
  • Internal Power Supply: Yes
  • Shunt Regulator: Yes
  • Configuration Code: 5 (Digitally Programmable Resolver Feedback and Position Controller)
  • Power Level: 2 (Continuous current of 3.8A, Peak current of 7.5A)
  • Option Code: B (14-bit RDC with +4 arcmin and 4096 pulse per revolution)
  • Customizable: Yes
  • Built-in Language: ServoBASIC Plus
  • User Memory: 24k
  • Weight: 5.9kg
  • Peak Power Capability: 2200 Watts
  • Peak Torque: 10lb-in. to 898lb-in.
  • Suitable for: PacSci Brushless Servo Motors
  • Functions: Digital Positioning, Velocity Control, Torque Control of Motors
  • Display: 7-Segment Display with up to 20 Status Display Codes
  • Protection Features: IT protection, Low line protection, Over-temperature protection, MOV-protected inputs.
