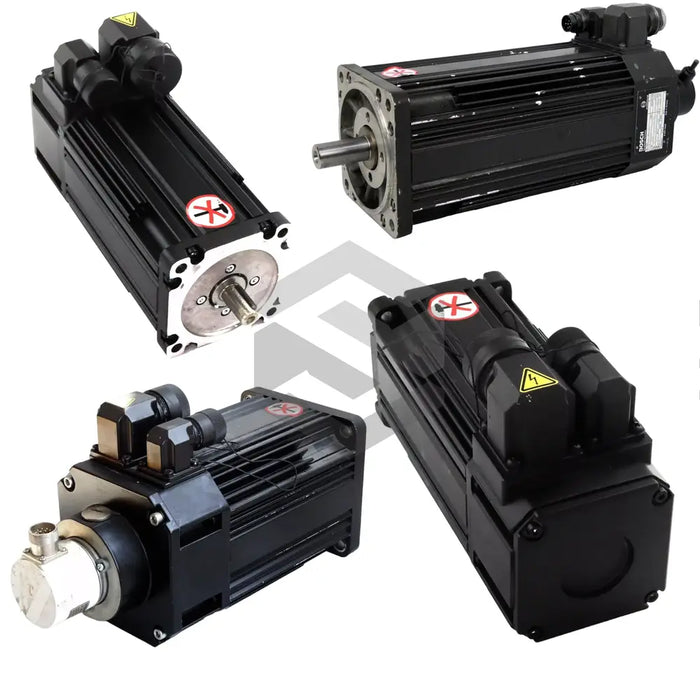

The Bosch Rexroth Indramat SE-B4.170.030-05.000 is a precision synchronous servo motor from the SE Synchronous Servo Motors series, delivering 14 Nm static torque at 5000 rpm. Featuring a torque constant of 0.58 Nm/A, shaft dimensions 24 x 50 mm, it weighs 19 kg and supports a 12.3 ms electrical time constant.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Electrical Time Constant (tel)
12.3 ms
Mass (excluding Holding Brake)
19.0 kg
Maximum Length (excluding Holding Brake)
315 mm
Maximum Torque (mmax)
37.5 Nm (with SM 50/100)
Mechanical Time Constant (tmech)
4.1 ms
Moment Of Inertia (j)
4.08 x 10^-3 kgm^2
Nominal Speed (nn)
5000 rpm
Peak Current (imax)
145 A
Shaft Dimensions (d X L)
24 x 50 mm
Static Torque (mo)
14 Nm
Thermal Time Constant (ttherm)
30 min
Torque Constant (kt)
0.58 Nm/A
Voltage Constant (ke)
67 V/1000 rpm
Winding Inductance (l2ph)
4.5 mH
Winding Resistance (r2ph)
0.37 Ohm
