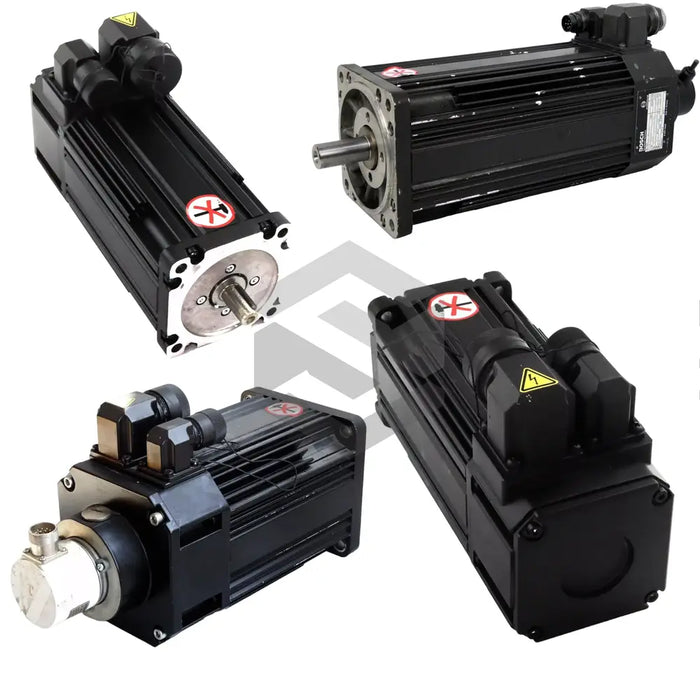

S image of SE-B4.210.050-08.000

SE-B4.210.050-08.000

by Bosch Rexroth Indramat
$2,721.69 - $2,721.69
$2,721.69
$2,721.69 - $2,721.69
$2,721.69

In Stock, Ships Fast

The SE-B4.210.050-08.000 servo motor from Bosch Rexroth Indramat's SE Synchronous Servo Motors series features a 142 mm flange and delivers precise high-speed performance. It delivers 18 Nm of static torque and up to 52 Nm maximum torque, operates at a nominal 5000 rpm speed, and accelerates to that speed in 60 ms. The motor draws 28 A at standstill and peaks at 174 A, with a mass of 22 kg ensuring rigid installation. It operates with low noise under 58 dB.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Flange Size

142 mm

Mass (not Incl. Holding Brake)

22.0 kg

Max Length (not Incl. Holding Brake)

347 mm

Maximum Torque Mmax

52.0 Nm (with SM 75/150)

Moment Of Inertia J

4.98 x 10^-3 kgm^2

Nominal Speed

5000 rpm

Peak Current Imax

174 A

Ramp-up Time To Nominal Speed

60 ms

Shaft Dimensions

Ø 24 x 50 mm

Static Torque Mo

18 Nm

Torque Constant Kt

0.64 Nm/A

Voltage Constant Ke

68 V/1000 rpm

Voltage Ripple

≤ 1.5%

Winding Inductance

3.3 mH

Winding Resistance

0.27 Ohm
