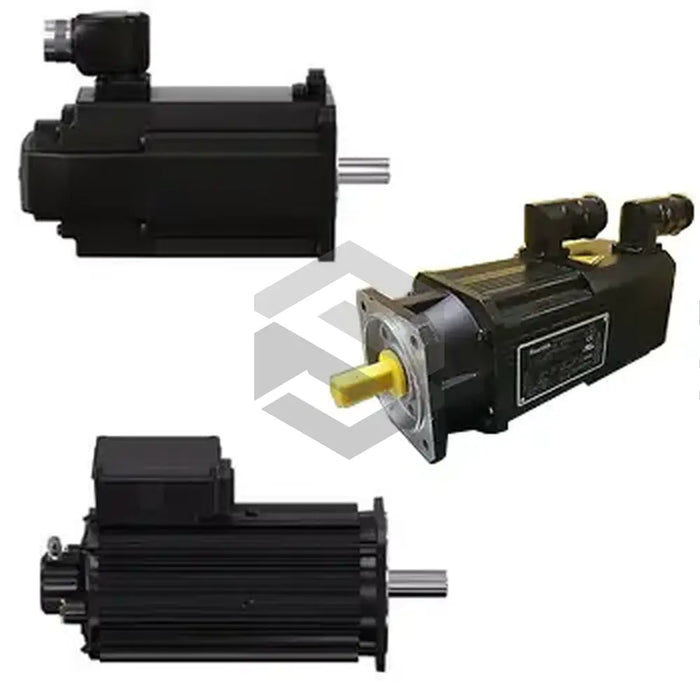

S image of SF-A0.0008.060-00.008

SF-A0.0008.060-00.008

by Bosch Rexroth Indramat
$2,809.24 - $3,090.16
$2,809.24
$2,809.24 - $3,090.16
$2,809.24
The SF-A0.0008.060-00.008 servo motor by Bosch Rexroth Indramat is designed for demanding industrial environments, ensuring durability and precise performance. This brushless, permanent magnet-excited motor features electronic commutation and functions optimally with the digital Servodyn-D inverter system. Key components include a single-turn absolute encoder for precise speed and position control and a smooth, low-contamination aluminum frame with installation pockets throughout its length. It operates seamlessly within an ambient temperature range of 0 to +40°C and up to an installation height of 1000 meters, offering IP67 protection except at the flange output. Constructed to IM B5 and DIN IEC 34-7 standards, it includes high-quality ball bearings with a minimum 20,000-hour service life and provides shock resistance of 6g. Its noise level is 58 dB(A) at 1 meter, and it meets Class F insulation per DIN IEC 85. Optional holding brakes and plug-in connections for output and encoder modules are available.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

SF-A0.0008.060-00.008

Type

Servo Motor

Motor Design

Permanent magnet-excited

Commutation

Electronic

Inverter System Compatibility

Digital Servodyn-D

Working with

Sinusoidal e.m.f.

Encoder Type

Single-turn absolute

Frame Material

Low-contamination aluminum

Protection Type

IP67 with mating connector (excluding flange output)

Mechanical Construction

IM B5 DIN IEC 34-7

Bearing Type

Ball bearings

Minimum Service Life

20,000 hours

Admissible Ambient Temperature

0 to +40 degrees Celsius

Maximum Installation Height

1000 meters above sea level

Shock Resistance

6 g

Noise Level

58 dB(A) at 1 meter

Insulation Class

Class F DIN IEC 85

Thermal Protection

Thermistors installed in windings

Brakes

Optional holding brakes

Connection Requirement

Plug-in connection for output and encoder module
