SF-A2.0041.030-10.037

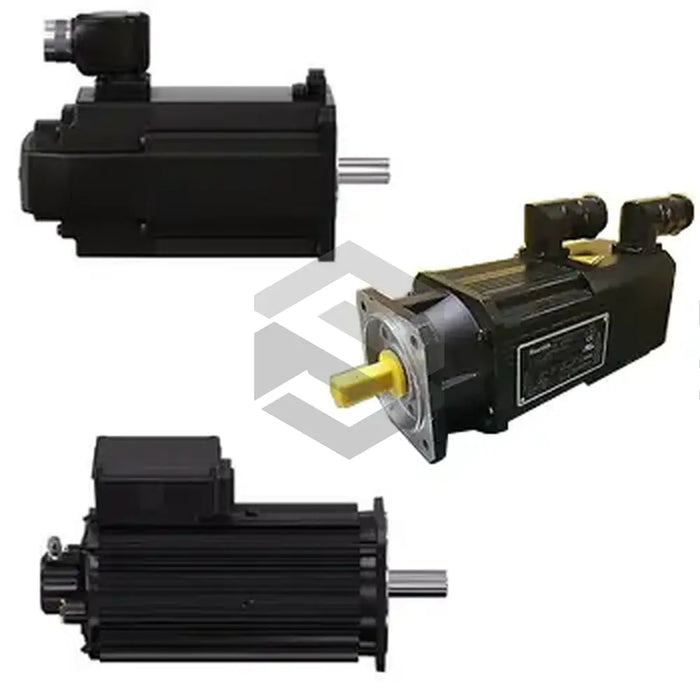

The Bosch Rexroth SF-A2.0041.030-10.037 servo motor is designed for versatile use in industrial environments, operating efficiently within 0 to 40 degrees Celsius. It features an IP67 protection rating when paired with a suitable connection, offering resistance to dust and brief water submersion. The motor is compatible with diverse installations due to its IM B5 basic type and an IEC 72-2 / DIN 42948 flange. Built with durable locating ball bearings ensuring a minimum service life of 20,000 hours, it includes a DIN 748-compliant cylindrical shaft end for reliable power transmission. The motor's robust design withstands up to 6 g shocks as per DIN IEC 68-2-27 standards and operates quietly at 58 decibels. It incorporates class F insulation for high-temperature endurance and features thermistors to prevent overheating. Additional features include natural convection cooling, a permanent magnet holding brake, a rated speed of 3000 min^-1, 4.0 Nm locked-rotor torque, 2.8 A locked-rotor current, and a 1.43 Nm/A torque constant.
