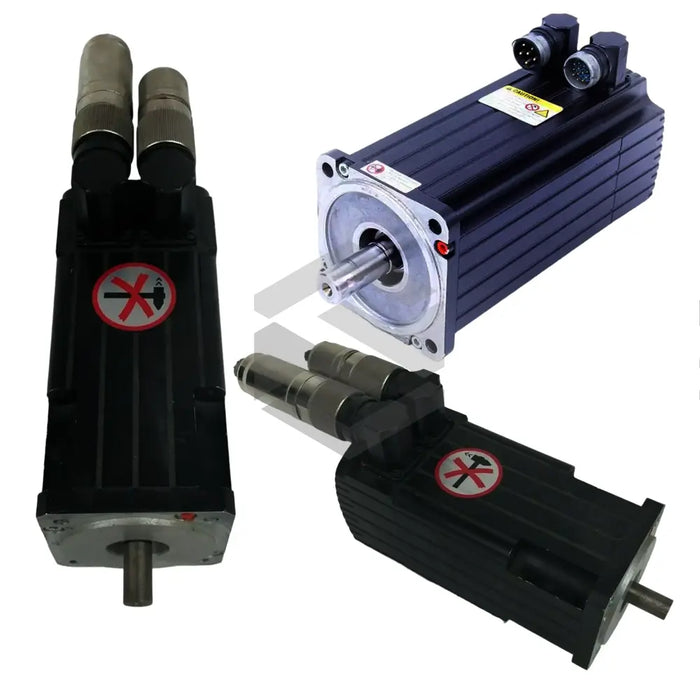

SG-A2.050.038-00.000
The Bosch Rexroth Indramat SG-A2.050.038-00.000 is a high-performance servo motor from the SG Synchronous Servo Motors series, engineered for precision and rigorous industrial use. It operates at a nominal speed of 4300 rpm and provides a reliable torque at standstill of 4.7 Nm. With a moment of inertia of 0.47 kgm2, this motor is ideally suited for applications that require rapid positioning and accurate control in automated systems. Its design supports a wide range of industrial tasks by delivering consistent performance even under high-speed conditions.
The motor features a robust set of technical specifications that ensure top-notch performance. It is designed to run with a connection voltage of 24V ± 10%, enabling stable operation in controlled environments. Additional key technical details include an electrical time constant of 0.260 ms, which contributes to a quick response in dynamic conditions. The integrated holding brake system, with a holding brake holding torque of 15 Nm and a power input of 19 W, further enhances its operational stability. Furthermore, the Code For Holding Brake Option (13, 03, 14, 04) allows for versatility in system configurations and maintenance standards.
Beyond its core performance metrics, this servo motor is built for durability and reliability in demanding industrial applications. Detailed mechanical features such as a precisely machined mounting surface, a threaded hole of M4 x 16, and a feather key conforming to DIN 6885 ensure secure coupling to loads. The motor also incorporates a pilot diameter of O64 mm, which aids in accurate alignment during installation. With a weight of 6.6 kg and dimensions including a length without brake of 172 mm, it offers compact integration without sacrificing robustness. Its design also accounts for longevity with a driving end bearing life of at least 20000 hours and an integrated temperature detector that enhances safety by preventing overheating.
