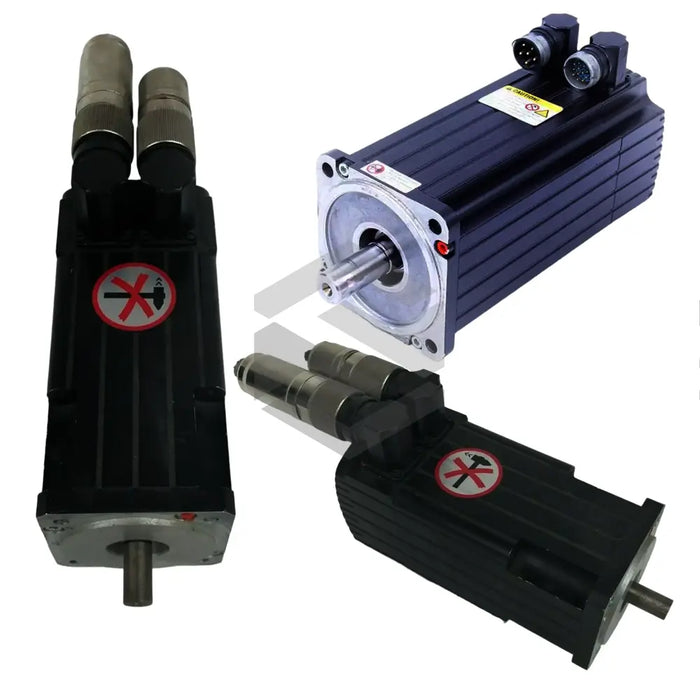

SG-B0.014.058-00.010
The Bosch Rexroth Indramat SG-B0.014.058-00.010 servomotor delivers precise motion control performance within the SG Synchronous Servo Motors series. Designed for industrial automation, the part_number by manufacturer integrates a compact form factor with high dynamic response. The unit operates at a Rated Voltage: 325 V and provides a Nominal Power: 0.82 kW output, supporting demanding torque requirements of up to Torque At Standstill: 1.70 Nm. Its robust construction ensures reliable operation across a wide range of industrial environments, making it ideal for precision positioning and continuous-duty applications. The lightweight design maintains structural integrity while minimizing inertia for accelerated response.
The SG-B0.014.058-00.010 is specified with a flange dimension of Flange: 70, facilitating straightforward mechanical integration. Its Length Without Brake: 199 mm and overall Weight: 3.5 kg enable installation in compact drive packages. The rotor exhibits a Moment Of Inertia: 0.082 kg·m², balancing high torque density with minimal energy loss. Electrical characteristics include an Electrical Time Constant: 0.018 sec and a Standstill Current: 4.0 A, yielding precise current control and rapid torque delivery. Feedback and positioning accuracy are enhanced by a torque constant of Torque Constant Factor: 0.43 Nm/A. The optional holding brake interfaces at Holding Brake Connection Voltage: 24V ±10% and provides a Holding Brake Holding Torque: 3.0 Nm with Holding Brake Power Input: 10 W, adding fail-safe retention capability. The brake assembly contributes Holding Brake Weight: 0.4 kg, resulting in a combined Weight With Holding Brake: 2.6 kg for applications demanding secure standstill locking.
Operational performance of the SG-B0.014.058-00.010 emphasizes speed and response. The servo achieves a Nominal Speed: 6800 RPM with minimal fluctuation under varying load conditions. The low inertia rotor, coupled with the specified Electrical Time Constant: 0.018 sec, ensures rapid acceleration and deceleration cycles, reducing settling times in motion profiles. Standstill torque of Torque At Standstill: 1.70 Nm can be maintained continuously, while the torque constant factor of Torque Constant Factor: 0.43 Nm/A guarantees consistent performance over repeated duty cycles. The compact dimensions, including the Length Without Brake: 199 mm, support integration into high-density machine designs without compromising thermal management or serviceability.
System integration is streamlined through standardized flange mounting and the SG series interface protocols. The absence of built-in braking simplifies drive configuration, while the optional Holding Brake module enables controlled deceleration and secure holds for vertical or inclined axes. Compatibility with Bosch Rexroth Indramat inverter drives allows advanced servo tuning, torque ripple minimization, and integrated safety features. Target applications include CNC machining centers, pick-and-place robotics, semiconductor handling systems, and packaging machinery, where the SG-B0.014.058-00.010’s combination of accuracy, compactness, and dynamic response meets the stringent demands of modern industrial automation.
