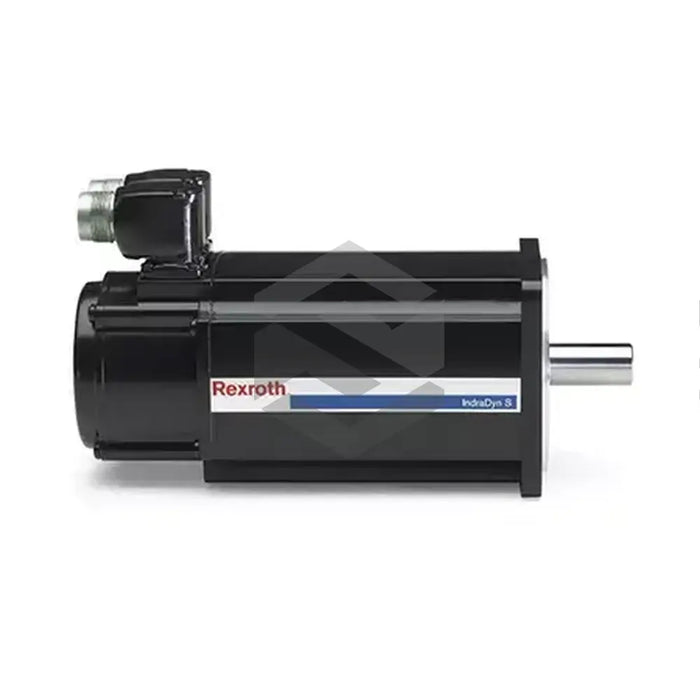

S image of SKM36-HFA0-S01

SKM36-HFA0-S01

by Bosch Rexroth Indramat
$1,077.84 - $2,592.10
$1,077.84
$1,077.84 - $2,592.10
$1,077.84

In Stock, Ships 1 - 3 Days

The SKM36-HFA0-S01 motor feedback system, a product of Bosch Rexroth Indramat, is engineered for high precision positioning in industrial applications. It features a ceramic ball bearing and achieves a measuring step accuracy of 2.5 arcseconds. This model supports 128 sine/cosine periods per revolution and up to 4,096 ascertainable revolutions, with an operating speed of up to 9,000 min⁻¹ and angular acceleration tolerance to 500,000 rad/s². It holds a SIL 2 safety integrity level (IEC 61508), Category 3 classification (EN ISO 13849), and a performance level of PL d. The SKM36-HFA0-S01 operates on a binary code interface with HIPERFACE communication and uses an 8-pin radial connector. It is optimized for an 8 V DC supply and a current consumption of 60 mA, functioning within -20°C to +110°C. With an IP50 enclosure rating, it withstands shocks up to 100 g, making it suitable for demanding industrial environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Motor Feedback System

Model

SKM36-HFA0-S01

Bearing Type

Ceramic Ball Bearing

Safety Integrity Level

SIL 2 (IEC 61508)

Safety Classification

Category 3 (EN ISO 13849)

Performance Level

PL d

Probability of Dangerous Failure

1.3 x 10^-8 per hour

Mission Time

20 years

Mean Time to Dangerous Failure

874 years

Sine/Cosine Periods per Revolution

128

Absolute Ascertainable Revolutions

4,096

Measuring Step

2.5 arcseconds

Operating Speed

Up to 9,000 min-1

Angular Acceleration Tolerance

Up to 500,000 rad/s^2

Interface

Binary Code

Communication

HIPERFACE

Connector Type

Male 8-pin Radial

Supply Voltage

7 V to 12 V DC

Optimized Voltage

8 V DC

Current Consumption

60 mA

Operating Temperature Range

-20°C to +110°C

Shock Resistance

Up to 100 g

Vibration Resistance

30 g at 10 Hz to 2,000 Hz

Enclosure Rating

IP50
