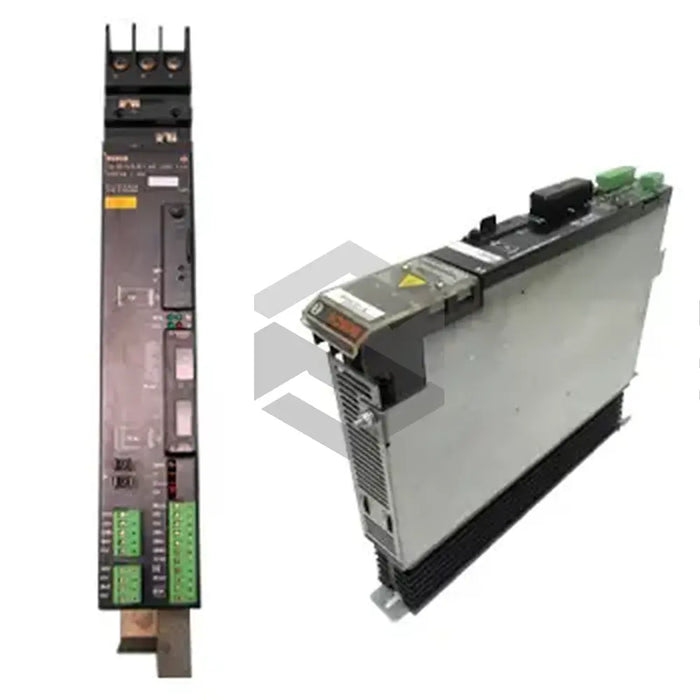

S image of SM 10/20-TC1

SM 10/20-TC1

by Bosch Rexroth Indramat
$1,850.85 - $15,394.10
$1,850.85
$1,850.85 - $15,394.10
$1,850.85
Bosch Rexroth Indramat's SM 10/20-TC1 is an AC inverter system designed to enhance motor control through precise regulation of speed and torque. The system operates on a three-phase power supply (380 V...415 V), with a maximum power loss of 90 W and a 20 W operational power requirement. It is designed to function within a 1000 m elevation range and an optimal temperature range of 0 ᵒC to 55 ᵒC. Its modular structure allows for expansion through additional modules, while an axial blower ensures effective heat dissipation. Extra features include a diagnostic module equipped with LEDs signaling various faults. At 45ᵒC, the system has a peak current of 2A and a rated current of 40A. Protective measures reduce motor current supply by 50% after 2 seconds of maximum current input without movement and the system automatically responds to short-circuited tacho lines.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

AC Inverter System

Model

SM 10/20-TC1

Operating Elevation

1000 m

Power Supply

Three-Phase 380 V...415 V

Maximum Power Loss

90 W

Operating Power

20 W

Operating Temperature Range

0 ᵒC to 55 ᵒC

Structure

Modular

Heat Dissipation

Axial Blower

Diagnostic Module Extensions

PSU fault, Module fault, Commutation fault, Speed monitoring, Excess temperature fault

Peak Current at 45 ᵒC

2 A

Rated Current

40 A

Storage Temperature

-25 ᵒC to 70 ᵒC

Overload Protection

Current reduced by 50% after 2 seconds of maximum current

Additional Protection

Tacho fault signal for short-circuited tacho line
