SM 1.5/3-TCT
{
"paragraphs": [
"

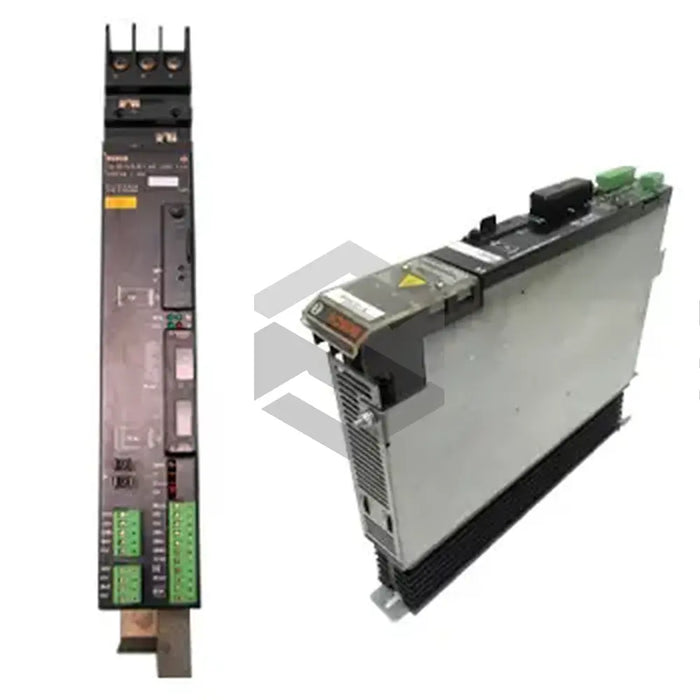

The Bosch Rexroth Indramat SM 1.5/3-TCT servo drive module is part of the SM AC Inverters series, engineered for precision single-axis motion control in industrial automation. This Servo Module operates on a 460 V nominal, up to 700 V maximum DC link voltage range and delivers a 1.5 A (continuous) rated current with a 3 A (acceleration peak) capacity for handling short-term overloads. With transistor construction and forced ventilation via an axial blower, the unit is designed to drive servo motors reliably under demanding conditions.
", "Featuring a robust metallic casing with ventilation slots, the SM 1.5/3-TCT incorporates advanced diagnostic features such as LED Indicators for fault conditions and a power loss rating of 30 W maximum. Its speed regulation range exceeds 1:10,000, enabling ultra-precise control of motor velocity. The module supports screw-type terminal blocks for secure input/output wiring and a DB9 connector for serial or encoder interface integration. Current reduction is specified at 1.2% per degree K above 45°C ambient, ensuring predictable performance across varying thermal loads.
", "Built to withstand harsh environments, this unit meets IP 00 (per DIN 40050 and IEC 144) protection standards and operates within 0°C to 55°C ambient temperature at altitudes up to 1000 m AMSL. It conforms to Class F (DIN 40040 compliant) humidity requirements and features EMI shielding to minimize interference. Weighing approximately 0.8 kg and including flange mounts for vertical or horizontal rack installation, the drive offers flexibility and durability. The SM 1.5/3-TCT servo drive module delivers efficient, stable performance in industrial applications, reducing maintenance requirements while enhancing system reliability and precision.
" ] }
