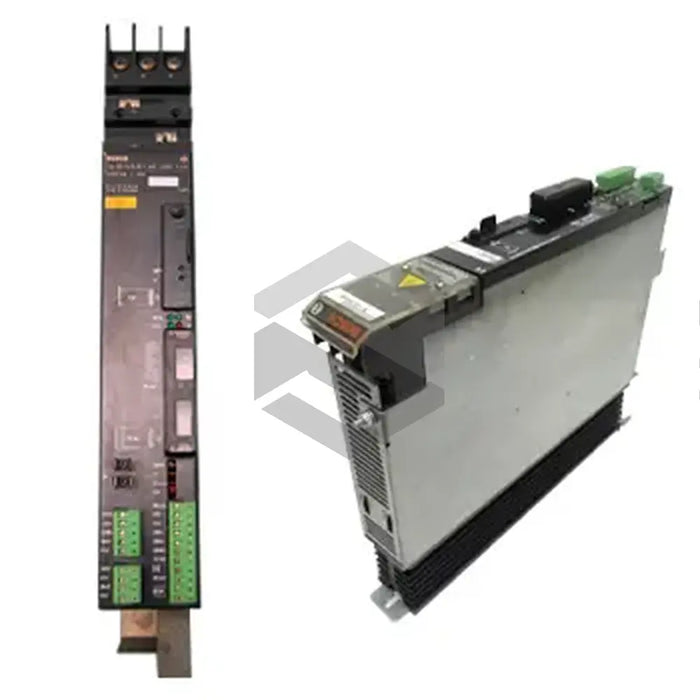

The Bosch Rexroth Indramat SM10 109-0685-3B04-00 is an SM AC Inverters series AC inverter by Bosch Rexroth Indramat. It features a 10 A rated current and 20 A peak current, supports a 460–700 V DC link voltage range, uses forced ventilation cooling, operates to 55 °C and requires IP00 protection.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Admissible Humidity
Class F and DIN 40040
Cooling
Forced Ventilation
Current Reduction
1.2% per degree K at ambient temperature > 45°C
Dc Link Voltage
460 Vrated < VN < 700 Vmax
Enable Signals Input
+24 V (FG: X6.3 and X6.4)
Max Operating Height
1000 m above mean sea level
Max Operating Temperature
0°C to +55°C
Max Power Loss
90 W
Max Storage Temperature
-25°C to +70°C
Peak Current
20 A
Power Supply
20 W
Protection Standard
IP 00 (DIN 40050 and IEC 144)
Rated Current
10 A
Speed Regulating Range
> 1:10,000
Warranty
One-year
