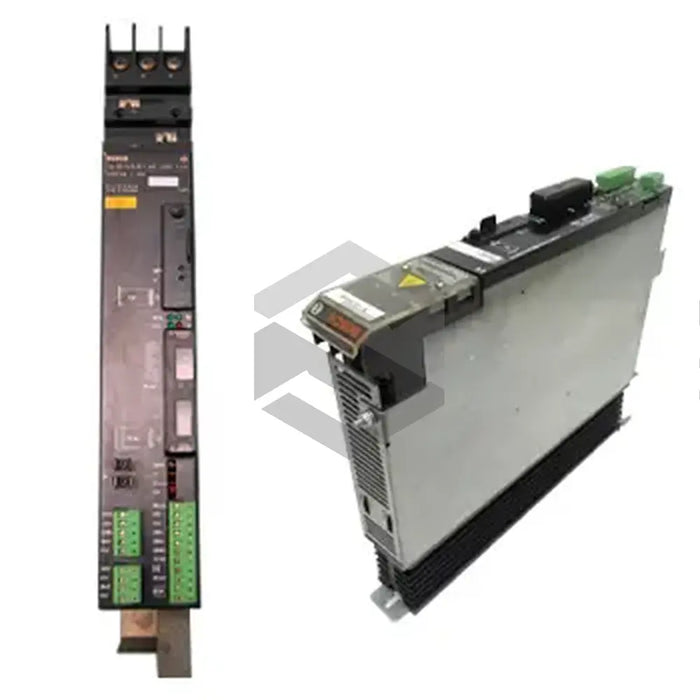

S image of SM13 109-0700-4A06-02

SM13 109-0700-4A06-02

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message

The Bosch Rexroth Indramat SM13 109-0700-4A06-02 from the SM AC Inverters series is a robust AC inverter engineered for demanding industrial automation tasks. It features a speed regulating range of >1:10,000 and a control input type of ±7 to ±11 V for precise command execution. The inverters Dc link voltage spans 460 V rated to 700 V max, while its peak current capability varies from 10 A to 100 A and its rated current (continuous) from 5 A to 50 A. Forced ventilation is provided by 1 axial blower, 24 V DC, 100 mA to ensure reliable cooling. Built to IP00 protection class, it operates safely between 0°C and +55°C and can be deployed up to 1000 m amsl.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Admissible Humidity

Class F and DIN 40040

Control Input Type

Differential command inputs ±7 to ±11 V for SW1

Cooling Method

Forced ventilation with 1 axial blower, 24 V DC, 100 mA

Dc Link Voltage

460 Vrated to 700 Vmax

Max Operating Height

1000 m amsl

Max Storage Temperature

-25°C to +70°C

Maximum Operating Temperature

0°C to +55°C

Maximum Power Loss

60 W to 350 W depending on the variant

Model Prefix

SM

Monitoring Functions

Speed (min/max), motor temperature, tacho fault, etc.

Peak Current

10 A - 100 A depending on model variant

Protection Class

IP 00 to DIN 40050 and IEC 144

Rated Current (continuous)

5 A - 50 A depending on model variant

Speed Regulating Range

> 1:10,000

Torque Current Reduction Factor

1.2% per degree K above 45°C ambient
