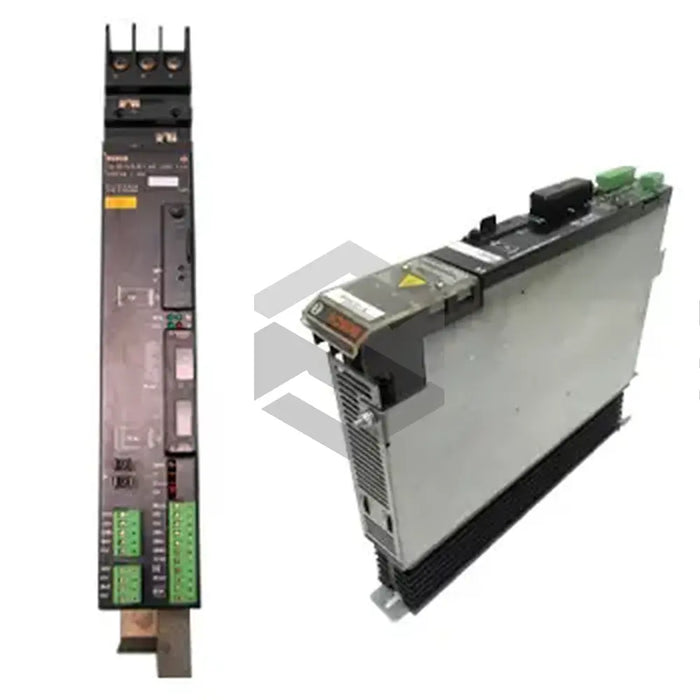

The SM17 109-0814-4B05-02 from Bosch Rexroth Indramat offers a rated current of 17 A and a peak current of 35 A. Part of the SM AC Inverters series, this modular AC inverter operates on 100-240 VAC input and features forced ventilation cooling.
It provides a DC link voltage of 460 to 700 V and includes safety monitoring for fault detection along with diagnostic outputs. The device weighs 1 kg and features an IP00 protection rating.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Blower Supply
24 V DC, 100 mA
Command Input Voltage Range (SW1)
±7 V to ±11 V
Command Input Voltage Range (SW2)
±10 V
Cooling Method
Forced ventilation with axial blower
Current Reduction
1.2% per K for Ta >45°C
DC Link Voltage
460 V (rated) to 700 V (max)
Diagnostic Outputs
Ready signals, tacho voltage, current measurements
Max Operating Height
1000 m amsl
Maximum Power Loss
150 W
Operating Temperature
0°C to +55°C
Peak Current
35 A
Protection Standard
IP00 (DIN 40050, IEC 144)
Rated Current
17 A
Safety Monitoring
Module fault, tacho fault, motor block, temperature
Speed Regulating Range
> 1:10,000
Storage Temperature
-25°C to +70°C
