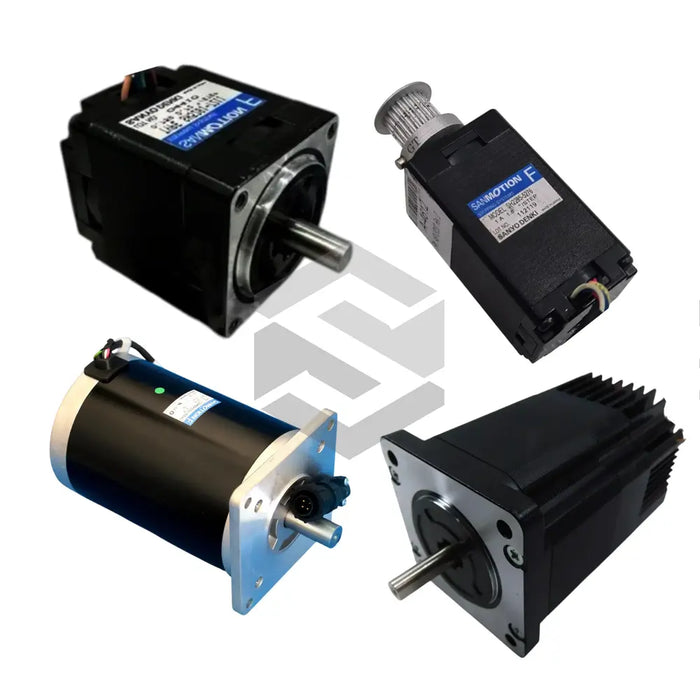

S image of SM2862-5155

SM2862-5155

by Sanyo Denki
$662.17 - $1,704.15
$662.17
$662.17 - $1,704.15
$662.17
The SM2862-5155 stepping motor from Sanyo Denki's F SANMOTION Stepping Motors series delivers 700 Ncm holding torque with a basic step angle of 1.8 deg +- 0.09 deg. It features a rated current of 4 A/phase, a flange size of 85.5 mm (NEMA 34), and rotor inertia of 3.0 x 10^-7 Kgm^2. The motor measures 96.5 mm in length and weighs 2.9 kg. It carries IP43 protection and is recommended for use with X-PLUS B and X-MIND Series drivers.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Application Type

Bipolar winding motor with lead wire connection

Basic Step Angle

1.8° ± 0.09°

Bipolar Drive Compatibility

Yes

Flange Size

85.5 mm (NEMA 34)

Holding Torque

700 Ncm

Mass

2.9 kg

Motor Length (l)

96.5 mm

Operating Voltage

250 VAC (350 VDC insulation voltage)

Protection Class

IP43

Rated Current

4 A/phase

Recommended Driver

X-PLUS B Series and X-MIND Series

Rotor Inertia

3.0 × 10⁻⁷ Kgm²

Warranty

One-year

Winding Inductance

6.4 mH/phase

Wiring Resistance

0.83 Ω/phase
