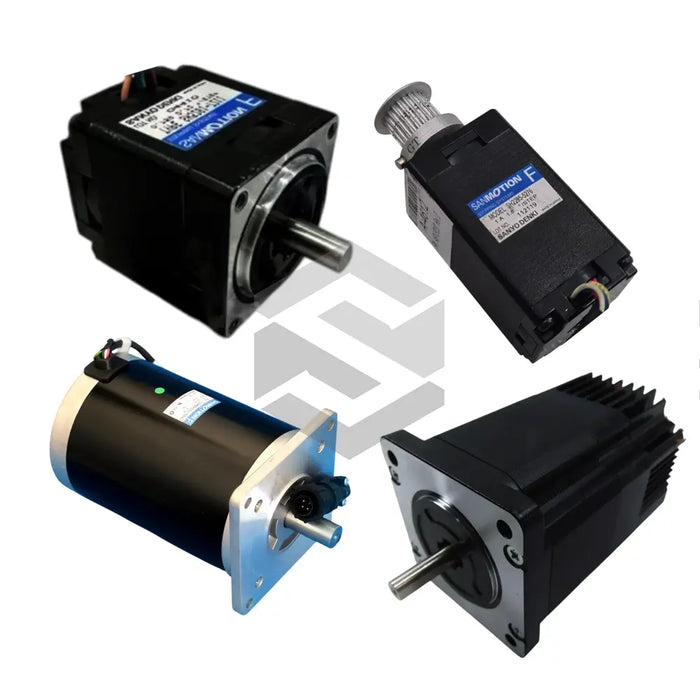

The SM2863-5052 is a High-Torque NEMA 34 stepper motor, single shaft by Sanyo Denki, part of the F SANMOTION Stepping Motors series. Delivering a holding torque of 9 N·m (1274.5 oz·in) and a step angle of 1.8°, it runs at 100 VAC with a rated current of 2 A per phase. Featuring a bipolar connection, IP40 protection and Class F insulation, this 127 mm long, 4 kg motor offers reliable performance for industrial automation.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Approvals & Standards
UL1004, EN60034‑1/‑5, IP40, Class F
Connection
Bipolar
Drive Circuit
Sanyo standard
Driving Method
2‑phase full‑step energization
Frame Size
NEMA 34
Holding Torque
9 N·m (1274.5 oz‑in)
Mass
4 kg (8.96 lbs)
Motor Length
127 mm (5 in)
Motor Type
High‑Torque NEMA 34 stepper motor, single shaft
Rated Current (per phase)
2 A
Rotor Inertia
4.5e‑4 kg·m² (24.6 oz‑in²)
Source Voltage
100 VAC
Winding Inductance (per phase)
32 mH
Winding Resistance (per phase)
4 Ω
