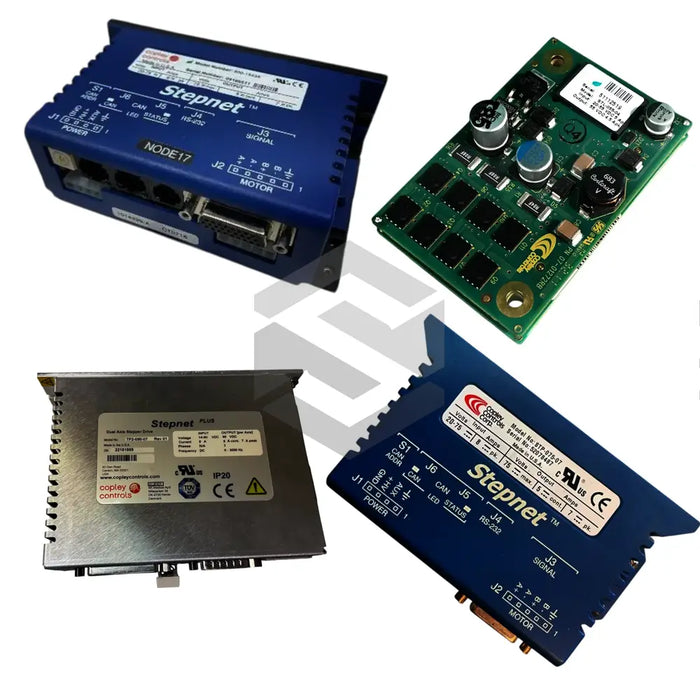

The SP2-090-07 is a Stepnet Compact Drives servo drive from Copley Controls. It features dual H-bridge MOSFET PWM outputs at 16 kHz and handles an input voltage of +14 to +90 Vdc. Communication via RS-232 (9600–115200 Baud) and CANopen. With 24 high-speed digital inputs, 7 digital outputs, and digital incremental encoder feedback, it delivers 5 A continuous (7 A peak) in a 114 x 73 x 21 mm package weighing 0.19 kg.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Ambient Operating Temperature
0 to +45 °C
Canopen Communication
Supported
Control Modes
Position, Velocity, Torque, Profile, Homing
Digital Inputs
24 high-speed digital inputs
Digital Outputs
7 digital outputs
Feedback Type
Digital Incremental Encoder
Input Power Voltage Range
+14 to +90 Vdc
Max Ambient Operating Temperature
45 °C
Mechanical Size
114 x 73 x 21 mm
Output Power, Continuous Current
5 A
Output Power, Peak Current
7 A
Pwm Outputs
Dual H-bridge MOSFET, 16 kHz
Quiescent Power
2W
Rs-232 Communication
9600 to 115,200 Baud
Weight
0.19 kg
