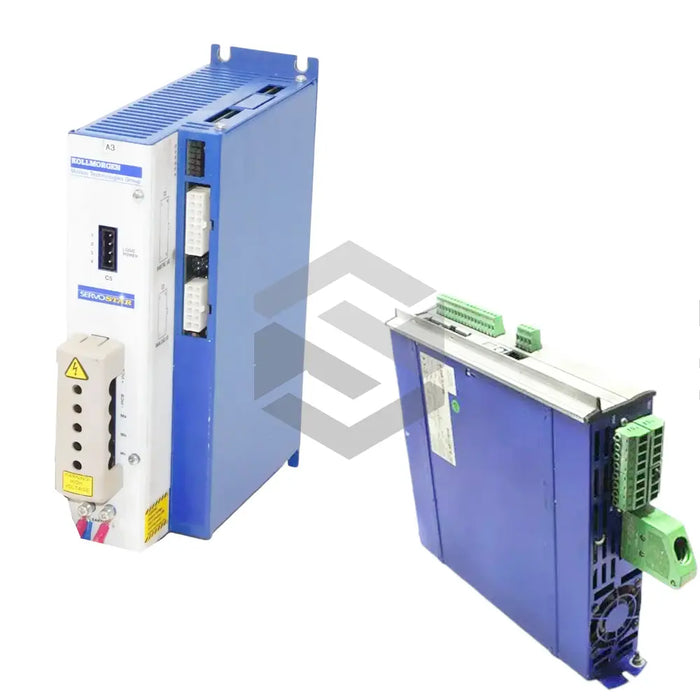

SP20600
by Kollmorgen
The Kollmorgen SP20600 drive is a high-performance controller module from the SP Servostar Servo Drives series designed for demanding industrial automation applications. It features an Input Voltage Range of 100-240 VAC and consumes only 14.5 W of power while delivering precision motion control. Equipped with 2 CAN interfaces and full electrical isolation, this module ensures robust network connectivity and safe operation. Its compact screw-in form factor facilitates installation in tight cabinet spaces, making it ideal for production lines requiring reliable servo drive performance.
Building on its core capabilities, the SP20600 offers electrically isolated CAN interfaces that protect against common mode interference and ground loops. The module supports a mounting style requiring the optional TB712 terminal block, which simplifies wiring of BUS+, BUS−, and motor phase connections. With integrated network capability and dual CAN ports, it enables daisy-chaining and master/slave configurations, while the dedicated earth connection and effective fan-side thermal management maintain operational stability. Precision diagnostics are available via onboard LEDs and the D-SUB communication port for rapid troubleshooting and system integration.
Designed to enhance system compatibility and efficiency, the SP20600 supports various feedback options including resolvers, incremental encoders, and sine encoders with EnDat and HIPERFACE protocols. Its modular design affords easy maintenance and swift replacement, while the logic power inputs optimize control stability under fluctuating loads. Thanks to its electrically isolated architecture and robust power supply handling, the drive delivers reliable performance in harsh industrial environments. By integrating precise positioning, jolt limiting, and electronic gearing into a single compact module, the SP20600 drive boosts throughput, reduces downtime, and streamlines motion control tasks across diverse automation systems.
