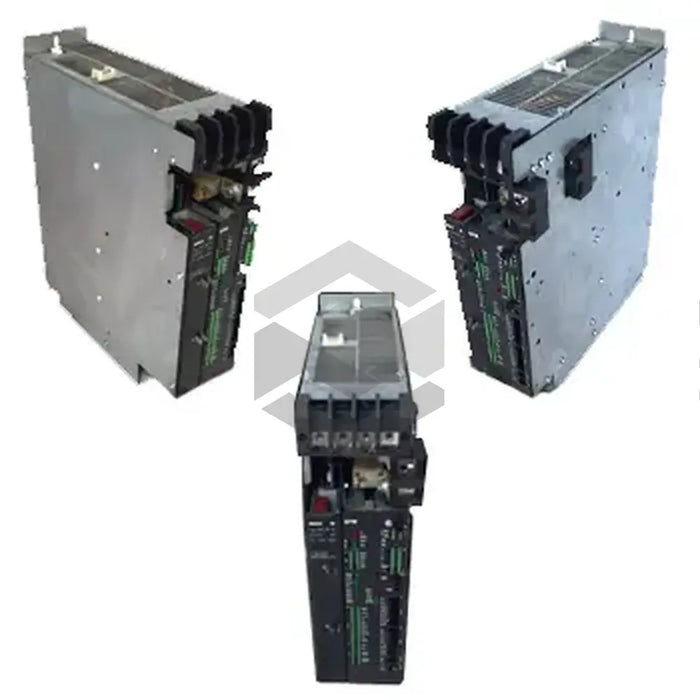

SPM 35- TD
The Bosch Rexroth Indramat SPM 35- TD spindle drive module in the SPM Inverter Modules series delivers high-precision servo control with robust industrial durability. Manufactured by Bosch Rexroth Indramat, this module provides a DC 520V power interface and a continuous 35A current rating. Its compact dimensions of 330 mm x 400 mm x 100 mm enable efficient use of space in tightly packed control cabinets without sacrificing performance. The design supports high torque and high speed, making it well-suited for demanding automation tasks in modern manufacturing environments. Integrated safeguards and a cast steel housing ensure reliable operation under challenging conditions.
Detailed technical specifications underscore the module’s versatility and resilience. The SPM 35- TD operates on DC power required, drawing up to 35A continuously at DC 520V. It features a robust cast steel housing material and a module form factor defined by 330 mm height, 400 mm length, and 100 mm width. With a weight of 12.00 kg, the unit balances structural integrity and manageable mass for installation. Certifications include CE, UL, and US approvals, verifying compliance with international safety standards. Communication is facilitated through EtherCAT and CANopen interfaces, ensuring seamless integration in networked automation architectures.
Operational performance is enhanced by an extended operating temperature range of -20 °C to +60 °C, enabling reliable function in environments with wide thermal fluctuations. As part of the SERVODYN-T product range, the SPM 35- TD complements Bosch Rexroth’s Servo Products category, specifically under the Servo Drive/Servo Control subcategory and Type: Spindle Drive Module. The module’s efficient power conversion and thermal management maintain consistent output during continuous operation. Its robust construction and easy serviceability reduce downtime and simplify maintenance cycles in industrial settings.
System integration is streamlined via versatile connectivity options, including native support for EtherCAT and CANopen, allowing straightforward networking with PLCs and motion controllers. The compact form factor and standardized mounting provisions facilitate retrofit projects and new installations alike. Target applications span CNC machining, high-speed milling, robotics, and precision assembly lines where space constraints and dynamic performance requirements converge. The SPM 35- TD delivers a balanced blend of power density, environmental resilience, and integration flexibility for advanced industrial automation systems.
